| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

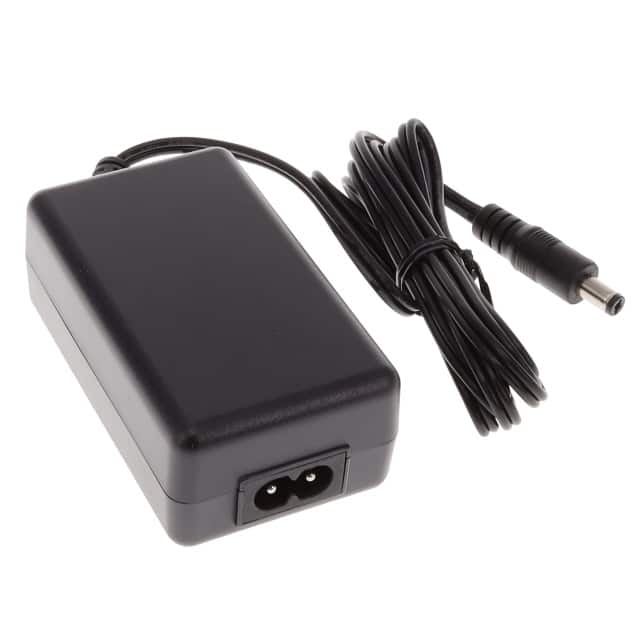

The Phihong PPL18W-050L6 is a 15W AC/DC desktop adapter designed for various applications including networking, peripherals, and consumer electronics. It delivers a stable 5V DC output at a maximum current of 3.0A.
This adapter complies with DOE Level VI efficiency standards and meets ErP/Ecodesign Directive 2009/125/EC. It offers over-voltage, short-circuit, and over-current protection for enhanced safety. The adapter operates within a wide AC input voltage range of 90 to 264VAC and features an input current of 0.48A maximum.
Key features include a non-vented, spill-proof case and Class B EMI compliance. The adapter has dimensions of 88.5mm x 50.0mm x 34.0mm and a weight of 170g. It utilizes an IEC 320-C8 input connector and a 2.1mm x 5.5mm x 10.0mm barrel plug output with positive center polarization. The included DC cord has a length of 1.50 meters.
The adapter provides 5V DC output at up to 3A maximum current.
The operating temperature range is 0°C to +40°C.
The dimensions are 88.5mm (L) x 50.0mm (W) x 34.0mm (H).
It meets Level VI efficiency and is compliant with DoE Level VI and ErP/Ecodesign Directive 2009/125/EC.
It accepts a universal AC input from 90 to 264VAC at 47 to 63Hz.
It is certified to cULus 62368-1 and IEC 62368-1 standards.
It includes over-voltage protection (12V max), over-current protection (7A max), and short-circuit protection with auto-recovery.
