| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

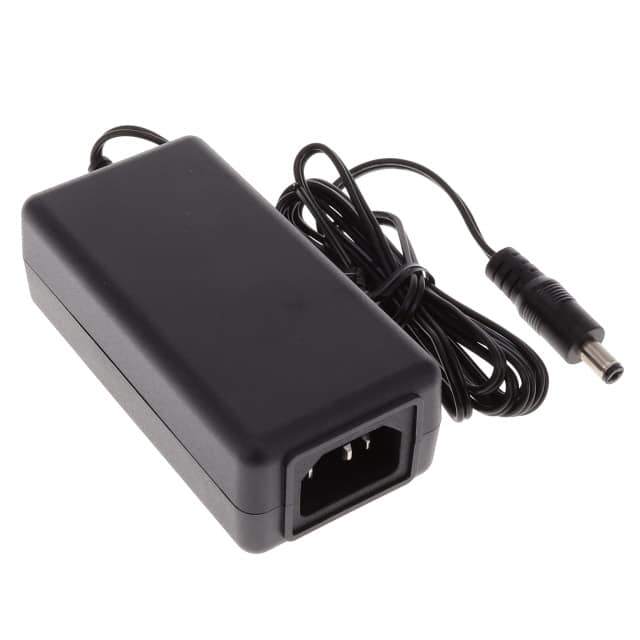

The Phihong USA PPL18U-240 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a 24V DC output at a maximum current of 800mA, delivering a total power of 19W.
This adapter complies with DOE Level VI and ErP/Ecodesign Directive 2009/125/EC standards, ensuring high energy efficiency. It operates within a wide AC input voltage range of 90 to 264VAC and features an input current of 0.48A max. The no-load power consumption is minimal, rated at 75mW maximum.
Key features include an IEC 320-C14 input connector and a standard 2.1mm x 5.5mm x 10.0mm barrel plug output with positive center polarization. The adapter has a non-vented, spill-proof case and operates within a temperature range of 0°C to 40°C. Its dimensions are 100.0mm x 50.0mm x 33.0mm, and it comes with a 1.50m cord.
Safety approvals include cULus and IEC standards, and it meets EMI emissions standards such as FCC Part 15 Class B and EN 55032 Class B. The PPL18U-240 is suitable for various applications including networking, peripherals, and consumer electronics.
The PPL18U-240 provides a 24V DC output at up to 800mA.
The AC input voltage range is 90 to 264VAC.
It meets Level VI and CoC Tier 2 efficiency standards.
It has a 2.1mm inner diameter by 5.5mm outer diameter barrel plug, 10.0mm length, with positive center polarity.
The operating temperature range is 0°C to 40°C.
The dimensions are 100.0mm x 50.0mm x 33.0mm.
