| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight |

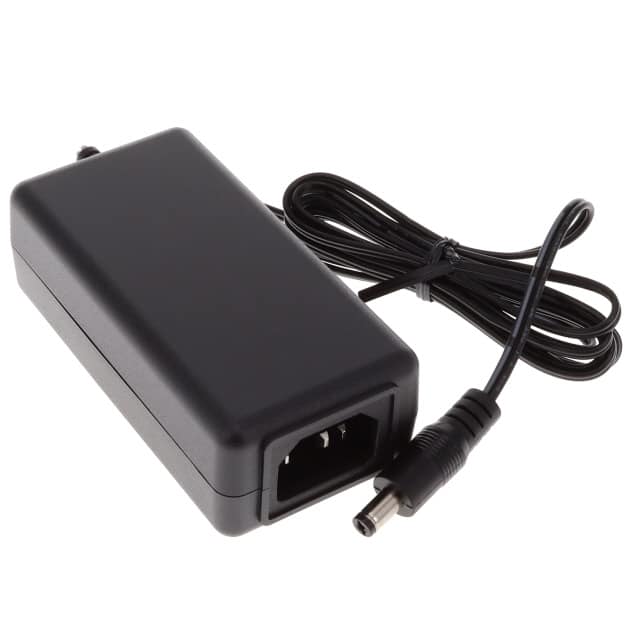

The Phihong USA PPL18U-180 is a 20W AC/DC desktop adapter designed for commercial ITE applications. It provides a stable 18V DC output at a maximum current of 1.1A.
This adapter meets DOE Level VI efficiency standards and complies with ErP/Ecodesign Directive 2009/125/EC, Regulation EU 2019/1782, and EU CoC Tier 2. It operates within a wide AC input voltage range of 90 to 264VAC and features a standard IEC 320-C14 input connector. The output is delivered via a 2.1mm x 5.5mm barrel plug with a positive center pin.
Key features include over-voltage, short-circuit, and over-current protection. The adapter has a non-vented, spill-proof case and meets Class B EMI standards (FCC Part 15, EN 55032). Its dimensions are 100.0mm x 50.0mm x 33.0mm, and it comes with a 1.50m cord. The operating temperature range is 0°C to 40°C.
The output voltage is 18V DC.
The maximum output current is 1.1A.
The input voltage range is 90 to 264VAC.
The operating temperature range is 0°C to +40°C.
It meets DOE Level VI and CoC Tier 2.
It has a 2.1mm x 5.5mm x 10.0mm DC plug with positive center polarity.
It is approved by cULus and IEC.
