| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

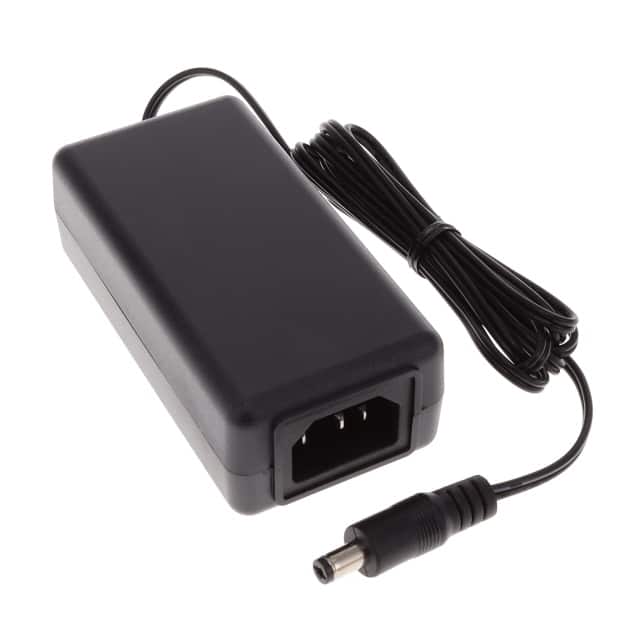

The Phihong USA PPL18U-150 is a 20W AC/DC desktop adapter designed for commercial ITE applications. It provides a stable 15V output at a maximum current of 1.3A.
This adapter features a universal input voltage range of 90 to 264 VAC and operates at a frequency of 47 to 63 Hz. It complies with DOE Level VI efficiency standards and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, ensuring energy efficiency. The unit includes over-voltage, short-circuit, and over-current protection for enhanced safety.
With a compact form factor measuring 100mm x 50mm x 33mm, the PPL18U-150 utilizes an IEC 320-C14 input connector and a 2.1mm x 5.5mm barrel plug output connector. The cord length is 1.50 meters. Its non-vented, spill-proof case makes it suitable for various environments.
Safety approvals include cULus and IEC standards, and it meets Class B EMI emissions requirements (FCC Part 15, EN 55032). The operating temperature range is 0°C to 40°C.
The PPL18U-150 adapter has an output voltage of 15V.
The maximum output current for the PPL18U-150 is 1.3A.
The PPL18U-150 adapter has a power rating of 20W.
The PPL18U-150 accepts an input voltage range of 90 to 264 VAC and an input frequency of 47 to 63 Hz.
The PPL18U-150 meets DOE Level VI efficiency standards and is compliant with ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, and EU CoC Tier 2.
The PPL18U-150 uses a 2.1mm x 5.5mm barrel plug with a 10.0mm length for its DC output.
The dimensions of the PPL18U-150 adapter are 100mm (L) x 50mm (W) x 33mm (H).
