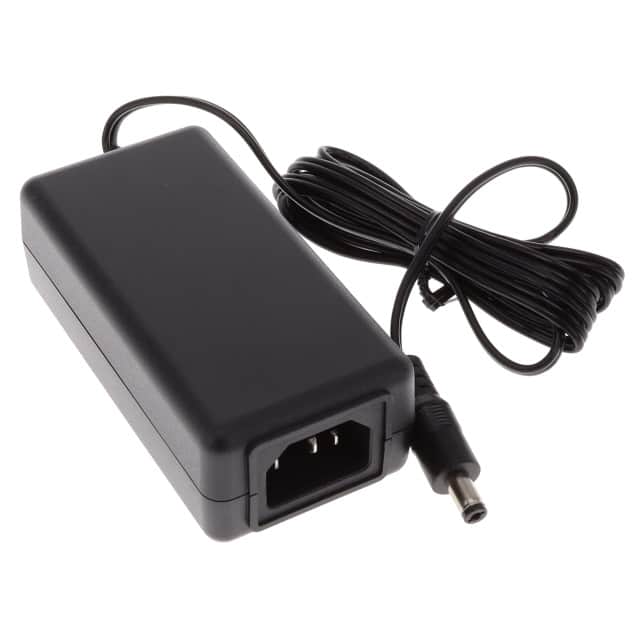

PPL18U-090 The Phihong USA PPL18U-090 is a 22.5W AC/DC desktop adapter providing a 9V output at 2.5A. It features a universal 90-264VAC input and meets DOE Level VI efficiency standards.
Mfr Part #:

PPL18U-090

Mfr Name: Phihong USA
Phihong USA
The Phihong USA PPL18U-090 is a 22.5W AC/DC desktop adapter providing a 9V output at 2.5A. It features a universal 90-264VAC input and meets DOE Level VI efficiency standards.
Stock on Request

PPL18U-090 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Approval Agency
Automotive Grade
Cable Length
Cord Length
Current
Dimensions
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Insulation Resistance
Length
Medical Grade
Military Grade
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Weight
Width
View Similar Products (0)

PPL18U-090 Description

Short technical summary and product information.

The Phihong USA PPL18U-090 is a versatile 22.5W AC/DC desktop power adapter designed for various applications including networking, peripherals, and consumer electronics. It delivers a stable 9V DC output with a maximum current of 2.5A.



This adapter operates with a wide AC input voltage range of 90 to 264VAC and 47 to 63Hz frequency, making it suitable for international use. It boasts DOE Level VI and ErP/Ecodesign Directive 2009/125/EC compliance, ensuring high energy efficiency with an average efficiency of 81.8% at 230VAC and a low no-load power consumption of 75mW at 230VAC.



Key features include over-voltage, short-circuit, and over-current protection for enhanced safety. The unit is housed in a non-vented, spill-proof case and meets Class B EMI standards. Its mechanical specifications include dimensions of 100mm x 50mm x 33mm and a weight of 170g. The adapter uses a standard IEC 320-C14 input connector and a 2.1mm x 5.5mm x 10.0mm DC output barrel connector with a positive center pin.



The PPL18U-090 complies with safety standards such as cULus 62368-1 and IEC 62368-1, and meets EMI/EMC requirements including FCC Part 15 Class B and EN 55032 Class B. It is designed for a 0°C to 40°C operating temperature range.

PPL18U-090 Quick Information

Product Type: AC/DC Desktop Adapter
Series: PPL18U Series
Canonical Name: Phihong USA PPL18U Series 9V 2.5A 22.5W AC/DC Desktop Adapter
Subcategory: Power Supplies

PPL18U-090 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PPL18U-090 Features

  • Provides 9V output at 2.5A.
  • Meets DOE Level VI efficiency standards.
  • Universal 90-264VAC input range.
  • Includes over-voltage and short-circuit protection.
  • Features IEC C14 input connector.

PPL18U-090 Applications

  • Ideal for networking routers and switches.
  • Powers CCTV cameras and surveillance systems.
  • Suitable for IoT gateways and edge devices.
  • Used in test and measurement instrumentation.
  • Powers point-of-sale terminals and peripherals.

PPL18U-090 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the PPL18U-090?

90 to 264 VAC.

What is the output voltage and current?

9.0V at up to 2.5A, delivering 22.5W.

What safety certifications does this adapter have?

cULus 62368-1 and IEC 62368-1.

What is the operating temperature range?

0°C to +40°C.

What efficiency rating does the PPL18U-090 meet?

Level VI and CoC Tier 2, with average efficiency ≥81.4% at 115VAC and ≥81.8% at 230VAC.

What is the size and weight of the adapter?

100mm x 50mm x 33mm, weighing 170g.

What type of DC connector does it use?

2.1mm x 5.5mm x 10.0mm center-positive plug.
