| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

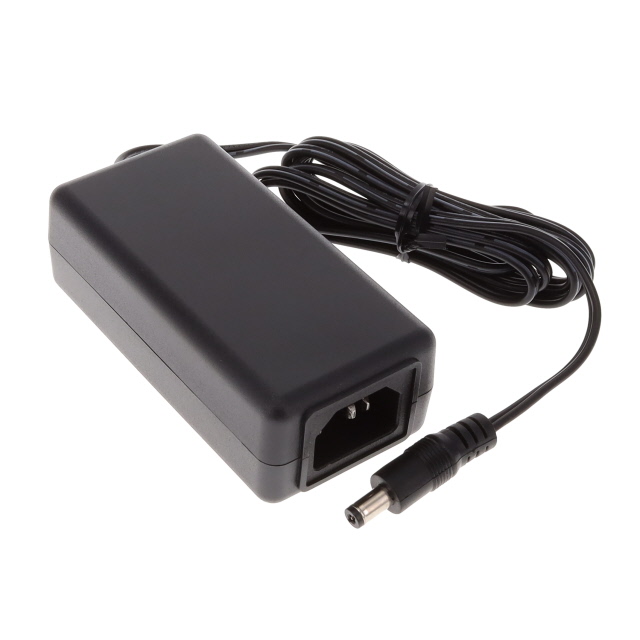

The Phihong USA PPL18U-050L6 is an AC/DC desktop adapter designed for commercial ITE applications. It delivers a 5V DC output with a maximum current of 3.0A, providing a total output power of 15W. This adapter complies with DOE Level VI efficiency standards and meets ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, and EU CoC Tier 2 (except specific voltage models).
Key features include over-voltage, short-circuit, and over-current protection for enhanced safety and reliability. The adapter operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. It has a non-vented, spill-proof case and meets Class B EMI emissions standards (FCC Part 15, EN 55032/CISPR 32).
The unit is housed in a compact desktop form factor (Class I) with dimensions of 100.0mm x 50.0mm x 33.0mm. It features an IEC 320-C14 input connector and a standard 2.1mm x 5.5mm x 10.0mm barrel plug output connector with positive center polarization. The cord length is 1.50 meters. Operating temperature range is from 0°C to 40°C.
The PPL18U-050L6 adapter has an output voltage of 5.0V and a maximum output current of 3.0A.
The PPL18U-050L6 adapter has an output power of 15.0W.
The adapter accepts an AC input voltage range of 90 to 264VAC.
The dimensions of the PPL18U-050L6 adapter are 100.0mm in length, 50.0mm in width, and 33.0mm in height.
The adapter can operate in temperatures ranging from 0°C to 40°C.
The adapter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
