| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

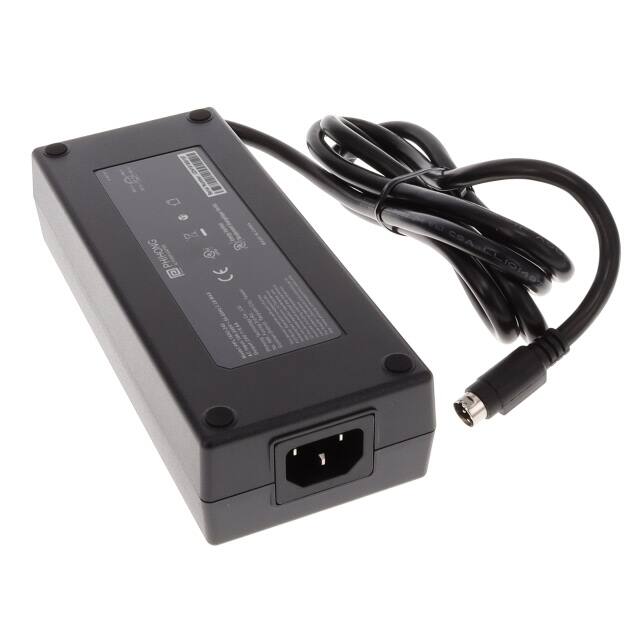

The Phihong USA PPL160U-240 is a 160W desktop AC/DC power adapter designed for ITE (Commercial) applications. It provides a stable 24V DC output at a maximum current of 6.6A, delivering up to 158.4W of power.
This adapter series complies with DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782 standards, ensuring high energy efficiency. It features over-voltage, short-circuit, and over-current protection for reliable operation. The unit operates within a wide AC input voltage range of 90 to 264VAC and has an input frequency of 47 to 63Hz.
Designed for versatility, the PPL160U-240 includes an IEC 60320 C14 input connector and a 4-pin Power DIN output connector. Its dimensions are 175.2mm x 74mm x 42mm, making it suitable for desktop use. The adapter operates in an ambient temperature range of 0°C to 40°C and offers Class B EMI compliance.
The PPL160U-240 provides a regulated 24.0V DC output.
The maximum continuous output current is 6.6A.
The unit operates reliably within an ambient temperature range of 0°C to +40°C.
The adapter accepts a universal AC input voltage range of 90 to 264VAC.
The total output power capacity is 158.4W.
The unit meets Level VI and CoC Tier 2 energy efficiency standards.
