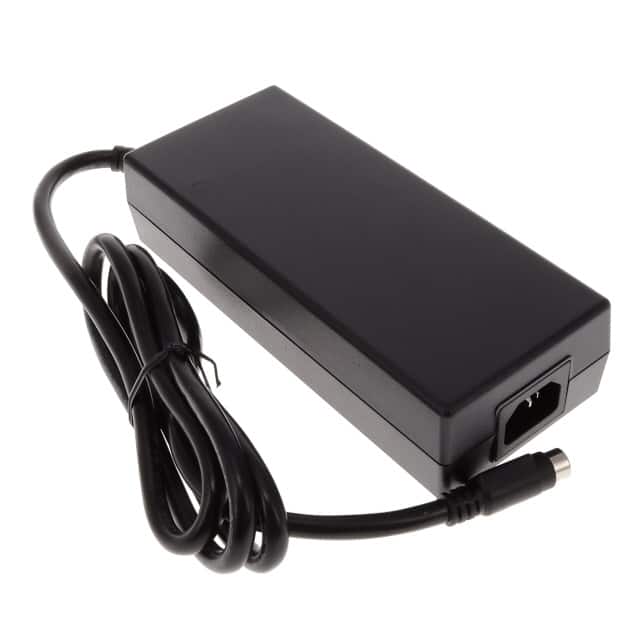

The Phihong PPL160U-120 is a 160W desktop AC/DC adapter designed for various applications including networking, peripherals, and consumer electronics. It delivers a stable 12V DC output with a maximum current of 12.5A, providing a total power of 150W.
This adapter series is compliant with DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, ensuring high energy efficiency. It incorporates over-voltage, short-circuit, and over-current protection for enhanced safety and reliability. The unit features a non-vented, spill-proof case and Class B EMI emissions.
With an input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz, it is suitable for international use. The adapter utilizes an IEC 60320 C14 input connector and a 4-pin DIN DC output connector. Its dimensions are 175.2mm x 74mm x 42mm, making it a compact solution for power delivery.
12.0V.
12.5A.
0°C to +40°C.
Level VI and CoC Tier 2.
90 to 264VAC.
Over-voltage, over-current, and short circuit protection.
Desktop (Class I).
