| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Ingress Protection | |
| Material | |
| Operating Temperature | |
| Outside Cable Diameter (Max) | |
| Outside Cable Diameter (Min) | |
| Panel Hole Size | |
| Thread Length | |
| Thread Size | |
| Type |

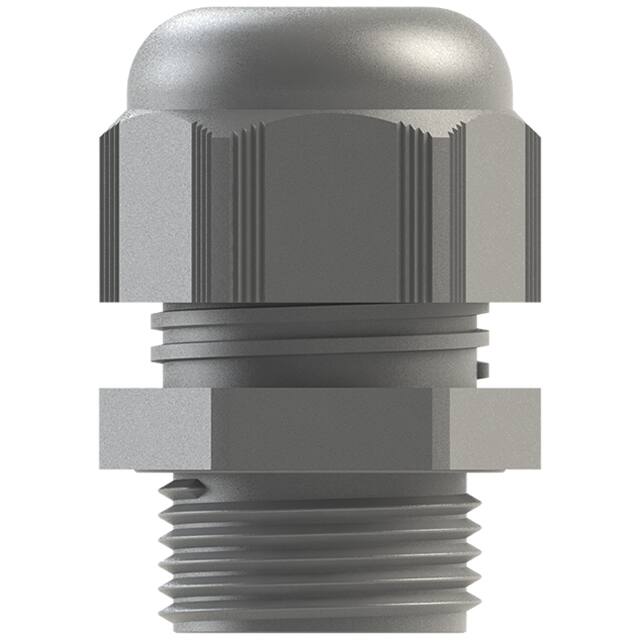

The SAB North America PPG-21 is a PG21 threaded cable gland designed for cable diameters from 13 to 18 mm. It is manufactured from polyamide 6 (nylon 6) in gray (RAL 7001) and features a chloroprene (CR) seal. The gland provides IP68 protection (dust tight, waterproof) and NEMA 4X rating, making it suitable for demanding industrial environments. It operates continuously from -20°C to +100°C and can withstand intermittent temperatures from -30°C to +150°C. The flammability rating is V2 per UL 94. Approvals include cURus, cULus, cCSAus, DNV-GL, and CE.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.59 | $3.59 |
| 25+ | $3.16 | $3.16 |
| 50+ | $3.04 | $3.04 |
| 100+ | $2.87 | $2.87 |
| 250+ | $2.71 | $2.71 |
| 500+ | $2.56 | $2.56 |
| 1,000+ | $2.41 | $2.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The continuous operating temperature range is -20°C to +100°C, with intermittent capability from -30°C to +150°C.
It has IP68 rating (dust tight, waterproof) and NEMA 4X rating.
The body is made of polyamide 6 (nylon 6) in gray, and the seal is chloroprene (CR).
It has a flammability rating of V2 according to UL 94.
It uses a PG21 thread with a thread length of 11 mm and requires a panel hole size of 28.3 mm.
It is listed as RoHS3 compliant, though the compliance is unverified.
