PNP8S3D2W03QE The C&K Components PNP8S3D2W03QE is a pushbutton switch with a SPST-NC circuit, rated for 5A and 32V. It features panel mount and solder lug termination.
Mfr Part #:

PNP8S3D2W03QE

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components PNP8S3D2W03QE is a pushbutton switch with a SPST-NC circuit, rated for 5A and 32V. It features panel mount and solder lug termination.
✓ Total Stock: 520 pcs
$ Price Range: $0.75

PNP8S3D2W03QE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
520 pcs
On Request
520 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PNP8S3D2W03QE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Ingress Protection
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

PNP8S3D2W03QE Description

Short technical summary and product information.

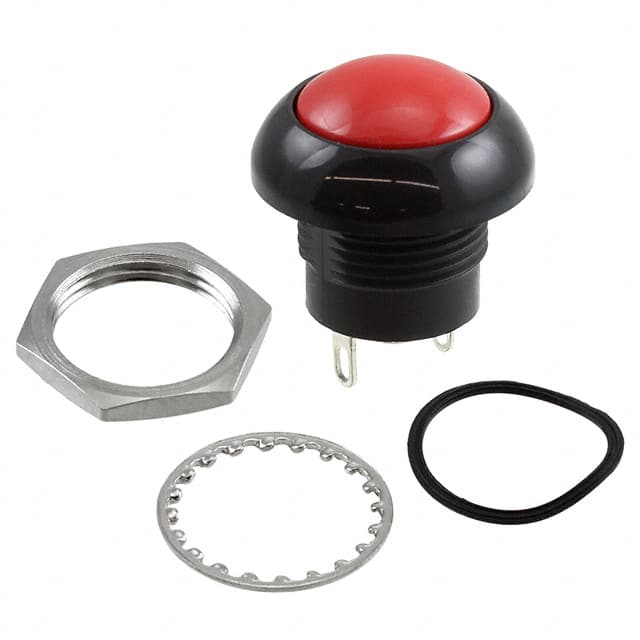

This C&K Components PNP8S3D2W03QE is a pushbutton switch designed for various applications. It operates with a SPST-NC (Single Pole Single Throw Normally Closed) circuit configuration and is rated for a current of 5A and a voltage of 32V.



The switch is designed for panel mounting with a front-facing panel cutout diameter of 12.30mm. It utilizes a solder lug termination style for secure connections. The operating temperature range is from -40°C to 85°C, and it offers an Ingress Protection rating of IP68, providing dust-tight and waterproof capabilities.



Additional features include an epoxy sealed terminal design for enhanced durability. The switch function is On-Mom, meaning it is active only while the button is pressed. The actuator type is a round, domed button with no marking.

PNP8S3D2W03QE Quick Information

Product Type: Pushbutton Switch
Canonical Name: C&K Components PNP8S3D2W03QE Pushbutton Switch
Subcategory: Pushbutton Switches

PNP8S3D2W03QE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PNP8S3D2W03QE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

PNP8S3D2W03QE Features

  • SPST-NC circuit configuration.
  • Rated for 5A current and 32V.
  • Panel mount with solder lug termination.
  • IP68 dust-tight and waterproof rating.
  • Operates from -40°C to 85°C.

PNP8S3D2W03QE Applications

  • Ideal for momentary switching needs.
  • Suitable for harsh environmental conditions.
  • Used in control panel applications.
  • Requires panel cutout of 12.30mm.

PNP8S3D2W03QE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the PNP8S3D2W03QE switch?

The current rating is 5A.

What is the voltage rating for this pushbutton switch?

The voltage rating is 32V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What type of circuit does the PNP8S3D2W03QE have?

It has a SPST-NC circuit.

How is this switch mounted?

It is a panel mount switch.

What is the ingress protection rating?

The ingress protection rating is IP68.
