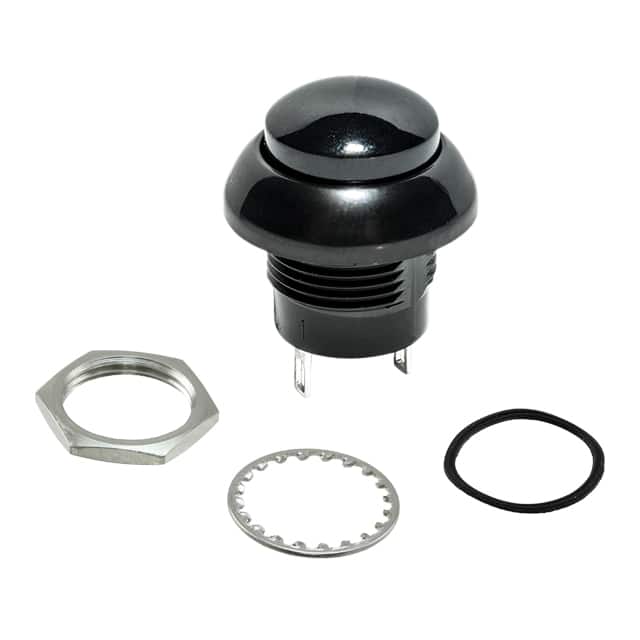

PNP8E2D2C03QE The C&K Components PNP8E2D2C03QE is a pushbutton switch featuring a SPDT circuit, rated for 5A at 32V. It offers panel mount capability with solder lug termination.
Mfr Part #:

PNP8E2D2C03QE

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components PNP8E2D2C03QE is a pushbutton switch featuring a SPDT circuit, rated for 5A at 32V. It offers panel mount capability with solder lug termination.
✓ Total Stock: 100 pcs
$ Price Range: $0.75

PNP8E2D2C03QE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PNP8E2D2C03QE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Ingress Protection
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

PNP8E2D2C03QE Description

Short technical summary and product information.

This C&K Components PNP8E2D2C03QE pushbutton switch is designed for reliable operation in various applications. It features a Single Pole Double Throw (SPDT) circuit configuration, capable of handling a current rating of 5A at a voltage rating of 32V.



The switch is designed for panel mounting with a front-facing orientation and utilizes solder lug termination for secure connections. Its operating temperature range is from -40°C to 85°C, and it boasts an IP68 ingress protection rating, making it dust-tight and waterproof.



Additional features include epoxy sealed terminals for enhanced durability and a round button actuator. The panel cutout diameter required is 12.30mm. This switch is suitable for applications requiring a robust and dependable pushbutton interface.

PNP8E2D2C03QE Quick Information

Product Type: Pushbutton Switch
Canonical Name: C&K Components PNP8E2D2C03QE SPDT Pushbutton Switch
Subcategory: Pushbutton Switches

PNP8E2D2C03QE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PNP8E2D2C03QE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

PNP8E2D2C03QE Features

  • SPDT circuit for versatile switching.
  • Rated for 5A current and 32V voltage.
  • Panel mount with solder lug termination.
  • IP68 dust-tight and waterproof rating.
  • Operates from -40°C to 85°C.

PNP8E2D2C03QE Applications

  • Ideal for control panel interfaces.
  • Suitable for harsh environmental conditions.
  • Used in industrial equipment controls.
  • Applicable in automotive systems.
  • Reliable for general purpose switching.

PNP8E2D2C03QE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the PNP8E2D2C03QE pushbutton switch?

The current rating is 5A (DC).

What is the voltage rating for the PNP8E2D2C03QE switch?

The voltage rating is 32 V.

What type of circuit does the PNP8E2D2C03QE pushbutton switch have?

It has an SPDT circuit.

What is the operating temperature range for this switch?

The operating temperature range is -40°C to 85°C.

How is the PNP8E2D2C03QE switch mounted?

It is a panel mount switch, front-mounted.

What is the ingress protection rating of this pushbutton switch?

The ingress protection rating is IP68, meaning it is dust-tight and waterproof.
