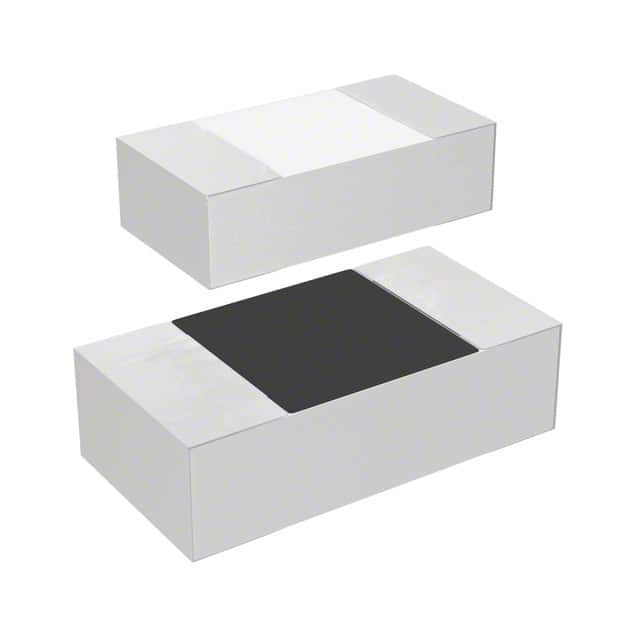

PNM0402E3502BST1 The Vishay Dale PNM0402E3502BST1 is a thin film chip resistor with 35 kOhms resistance and a ±0.1% tolerance. It is designed for surface mount applications in a 0402 package.
Mfr Part #:

PNM0402E3502BST1

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale PNM0402E3502BST1 is a thin film chip resistor with 35 kOhms resistance and a ±0.1% tolerance. It is designed for surface mount applications in a 0402 package.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.02

PNM0402E3502BST1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PNM0402E3502BST1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

PNM0402E3502BST1 Description

Short technical summary and product information.

This Vishay Dale PNM0402E3502BST1 is a surface mount chip resistor from the PNM series. It features a resistance value of 35 kOhms with a tight tolerance of ±0.1%. The power rating is 0.05W (1/20W), and it is constructed using thin film technology.



Key electrical characteristics include a temperature coefficient of ±25ppm/°C and an operating temperature range of -55°C to 155°C. The component is housed in a 0402 (1005 Metric) package, measuring 1.07mm in length and 0.56mm in width, with a maximum height of 0.84mm. It has 2 terminations.



This resistor is designed with features such as anti-sulfur, moisture resistance, and non-inductive, non-magnetic properties, making it suitable for various demanding applications. The RoHS status is ROHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1.

PNM0402E3502BST1 Quick Information

Product Type: Chip Resistor - Surface Mount
Series: PNM
Canonical Name: Vishay Dale Thin Film Chip Resistor, 35 kOhms, ±0.1% Tolerance, 0.05W
Subcategory: Chip Resistor - Surface Mount

PNM0402E3502BST1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PNM0402E3502BST1 Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

PNM0402E3502BST1 Features

  • 35 kOhms resistance with ±0.1% tolerance.
  • 0.05W power rating in 0402 package.
  • Thin film composition for precision.
  • Wide operating temperature range.
  • Anti-sulfur and moisture resistant features.

PNM0402E3502BST1 Applications

  • Suitable for precision circuitry.
  • Ideal for compact electronic designs.
  • Used in moisture-sensitive environments.
  • Applications requiring stable resistance.

PNM0402E3502BST1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the PNM0402E3502BST1 resistor?

The resistance value is 35 kOhms.

What is the tolerance of the PNM0402E3502BST1 resistor?

The tolerance is ±0.1%.

What is the power rating of the PNM0402E3502BST1 resistor?

The power rating is 0.05W, or 1/20W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size is the PNM0402E3502BST1 resistor in?

The resistor is in a 0402 (1005 Metric) package.
