| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61,345 pcs
|
61345 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Termination Style |

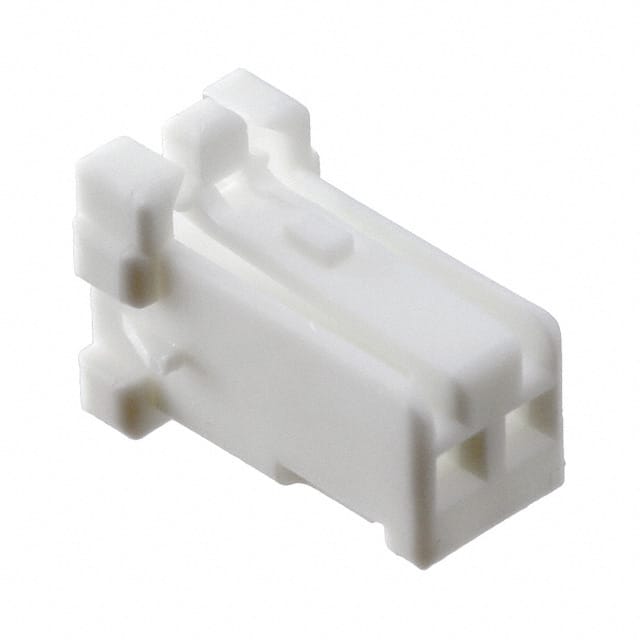

The JST PNIRP-02V-S is a 2-position rectangular socket housing designed for wire-to-wire connections. It features a 2.00mm pitch and a single row of contacts, with a latch holder fastening type for secure mating. The housing is natural in color and supports crimp termination, making it suitable for field-installable or production wire harnesses.
Key specifications include an operating temperature range of -25°C to 85°C, allowing use in a variety of environments. The housing is free hanging (in-line) mounted, meaning it does not require a PCB footprint. Compliance with RoHS3, REACH, and MSL Level 1 is indicated, though unverified.
This housing is commonly used in consumer electronics, appliances, and compact wiring applications where space and reliability are important. The 2.00mm pitch provides a balance between density and ease of assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.09 | $0.09 |
| 25+ | $0.08 | $0.08 |
| 100+ | $0.07 | $0.07 |
| 250+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.06 | $0.06 |
| 10,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
2.00mm (0.079").
Free hanging (in-line).
Latch holder.
-25°C to 85°C.
Crimp.
Natural.
