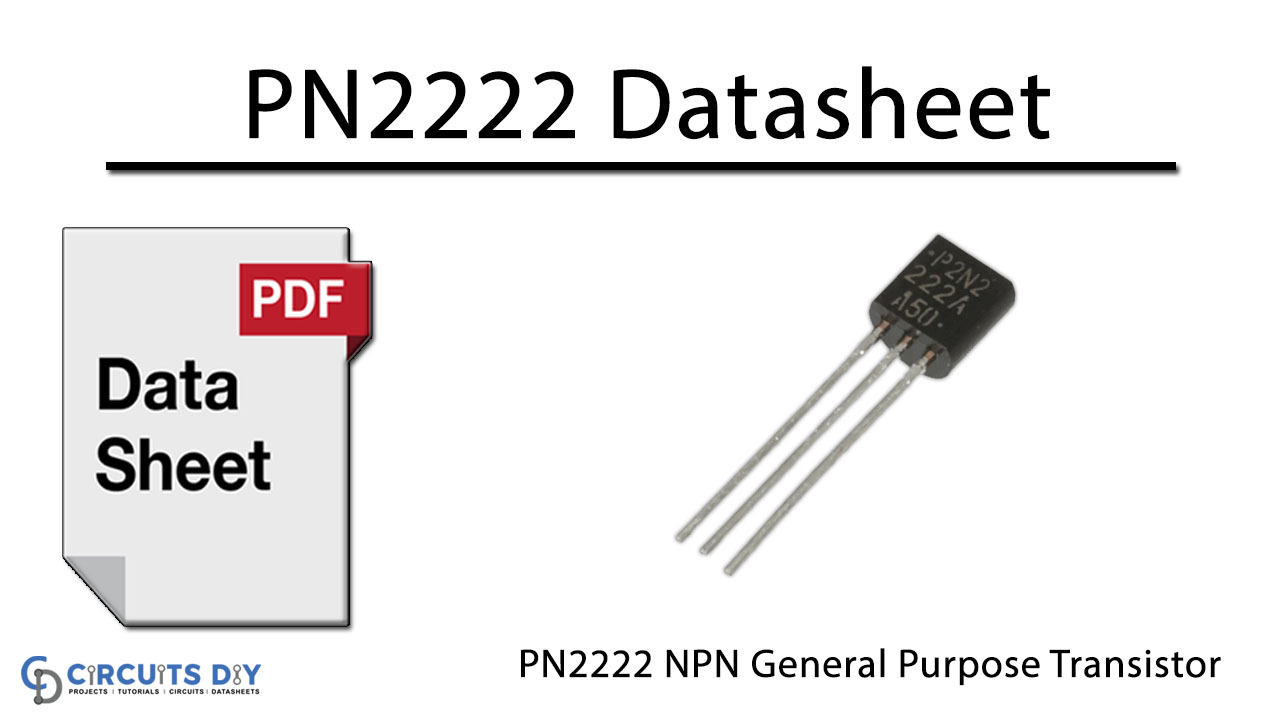

PN2222 The PN2222 is an NPN general purpose transistor from NATIONAL, suitable for switching and linear amplification. It offers key electrical characteristics in a TO-92 package.
Mfr Part #:

PN2222

Available from 1 distributors
Mfr Name: NATIONAL
NATIONAL
The PN2222 is an NPN general purpose transistor from NATIONAL, suitable for switching and linear amplification. It offers key electrical characteristics in a TO-92 package.
✓ Total Stock: 74 pcs
$ Price Range: $0.42

PN2222 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
NTD Electronics ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PN2222 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
View Similar Products (0)

PN2222 Description

Short technical summary and product information.

The PN2222 is an NPN bipolar junction transistor designed for general-purpose switching and linear amplification applications. Manufactured by NATIONAL, this component features a maximum Collector-Emitter Voltage (Vce) of 30V and a maximum Collector Current (Ic) of 0.8A. Its transition frequency is rated at 250 MHz.



This transistor is housed in a TO-92 or SOT54 plastic package, making it suitable for through-hole mounting. The PN2222 is a versatile component for various electronic circuits requiring reliable switching or amplification capabilities. Its specifications make it a common choice for hobbyist and professional electronic projects.



Key electrical parameters include a maximum Collector-Base Voltage (Vcb) of 60V and a maximum Emitter-Base Voltage (Veb) of 5V. The maximum Collector Power Dissipation (Pc) is 0.5W. These characteristics define its operational limits and suitability for different circuit designs.

PN2222 Quick Information

Product Type: NPN Transistor
Canonical Name: PN2222 NPN General Purpose Transistor
Subcategory: NPN

PN2222 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PN2222 Estimated Pricing

Qty Low High
1+ $0.42 $0.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

PN2222 Features

  • NPN general purpose transistor.
  • Maximum 30V Collector-Emitter voltage.
  • Maximum 0.8A Collector current.
  • 250 MHz transition frequency.
  • TO-92 and SOT54 package options.

PN2222 Applications

  • General purpose switching applications.
  • Linear amplification circuits.
  • Hobbyist electronic projects.
  • Prototyping and design.

PN2222 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum Collector-Emitter voltage for the PN2222 transistor?

The maximum Collector-Emitter voltage (Vce) for the PN2222 transistor is 30V.

What is the maximum Collector Current for the PN2222 transistor?

The maximum Collector Current (Ic) for the PN2222 transistor is 0.8A.

What is the transition frequency of the PN2222 transistor?

The transition frequency (fT) of the PN2222 transistor is 250 MHz.

What package type is the PN2222 transistor available in?

The PN2222 transistor is available in TO-92 and SOT54 packages.

What is the RoHS status of the PN2222 transistor?

The PN2222 transistor is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the PN2222 transistor?

The Moisture Sensitivity Level (MSL) for the PN2222 transistor is 1 Unlimited.

What is the REACH status for the PN2222 transistor?

The REACH status for the PN2222 transistor is Unaffected.
