PN22-2R-C

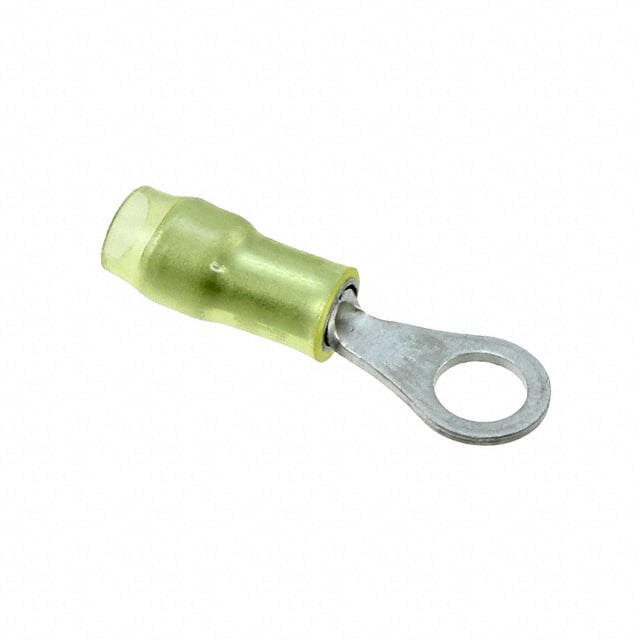

The PN22-2R-C is a circular ring terminal manufactured by Panduit Corporation. It is designed for use with 22 to 26 AWG solid or stranded copper wire and accommodates a #2 stud size. The terminal features a crimp termination style and is fully insulated with a yellow nylon housing, providing reliable electrical isolation.

Key specifications include a maximum voltage rating of 300V and a maximum operating temperature of 105°C. The contact is made of tin-plated copper, and the sleeve is brass with tin plating. The terminal has a wire strip length of 4.8 mm (3/16") and can accept a maximum wire insulation diameter of 2.29 mm (0.090"). Dimensions are 17.53 mm (0.690") in length, 5.08 mm (0.200") in width, and 0.51 mm (0.020") in thickness.

This ring terminal is suitable for free-hanging (in-line) mounting applications. It is commonly used in electrical and electronic systems requiring secure and insulated wire connections. The part is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.

Installation tools such as the CT-520 and CT-1525 are recommended for crimping, as noted in the manufacturer's datasheet. The part number suffix indicates package quantities, which can be referenced on the manufacturer's website.
