| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Housing Material | |
| Insulation | |
| Length | |
| Max Operating Temperature | |
| Military Grade | |
| Military Part Number | |
| Mounting Type | |
| Sleeve Material | |
| Stud | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Voltage Rating | |
| Width | |
| Wire Gauge | |
| Wire Strip Length |

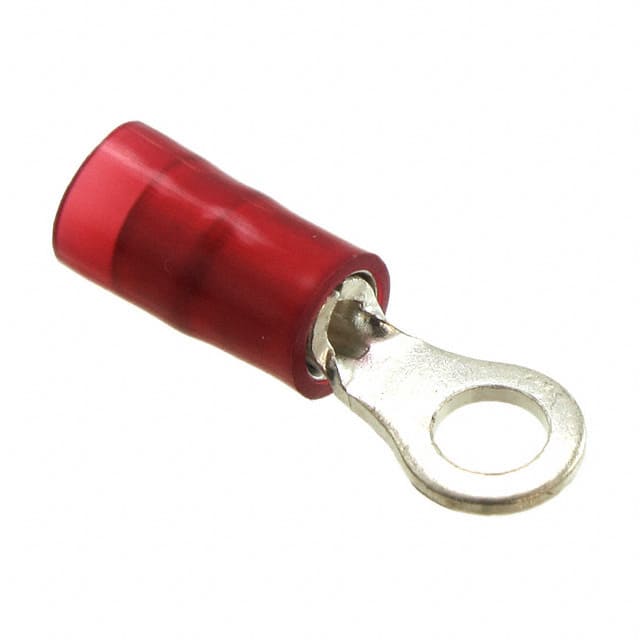

The Panduit PN18-6R-M is an insulated ring terminal designed for 18-22 AWG solid or stranded copper wire. It features a #6 stud size and a crimp termination for secure connections. The terminal is free hanging (in-line) and has a red nylon housing with a tin plated copper stamping and brass sleeve. It is rated for 600V maximum in building wire applications and 1000V maximum in signs, fixtures, and luminaires, with a maximum operating temperature of 105°C. The wire strip length is 5.6 mm (7/32"). This terminal is suitable for a variety of electrical wiring applications including control panels, power distribution, and industrial equipment. It is also assigned military part number MS25036-102 Class 1 & 2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.64 | $0.64 |
| 25+ | $0.61 | $0.61 |
| 100+ | $0.57 | $0.57 |
| 250+ | $0.54 | $0.54 |
| 1,000+ | $0.46 | $0.46 |
| 3,000+ | $0.44 | $0.44 |
| 6,000+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V maximum for building wire; 1000V maximum for signs, fixtures, and luminaires.
Free Hanging (In-Line).
18-22 AWG solid or stranded copper wire.
#6 stud.
105°C (221°F).
Yes, it is insulated with a red nylon housing.
Yes, it is assigned military part number MS25036-102 Class 1 & 2.
