| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Container Type | |
| Design | |
| Features | |
| Height | |
| Length | |
| Material | |
| Material Flammability Rating | |
| Ratings | |
| Thickness | |
| Width |

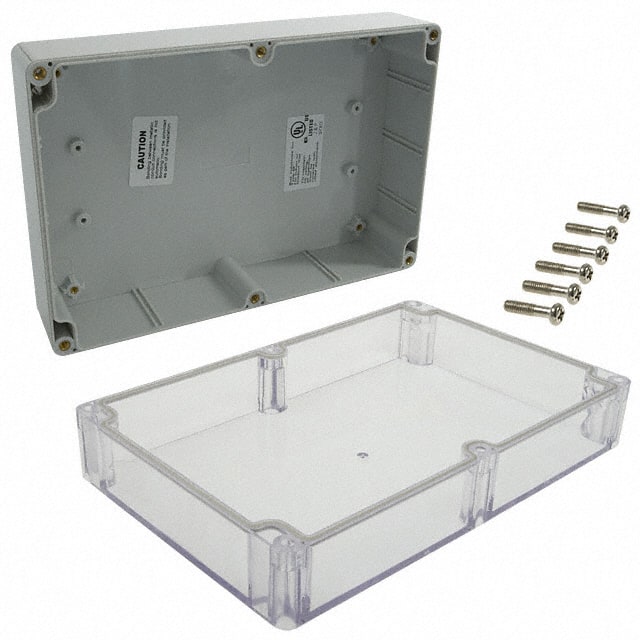

The Bud Industries PN-1329-C is a plastic enclosure box made from polycarbonate material. It features a gray body with a clear cover/door, allowing visual inspection of internal components. The box measures 222.00mm in length, 145.80mm in width, and 75.18mm in height, with a wall thickness of 3.05mm.
This enclosure includes card guides and PCB supports for easy mounting of circuit boards. It is designed with a cover included and carries a UL94 HB flammability rating. The box is rated IP65, NEMA 1, 2, 4, 4X, 12, 13, and UL-508, making it suitable for indoor and outdoor applications where protection against dust and water ingress is required.
The polycarbonate construction provides good impact resistance and durability. The clear cover enables status monitoring without opening the enclosure. This product is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $26.27 | $26.27 |
| 10+ | $24.06 | $24.06 |
| 25+ | $23.87 | $23.87 |
| 500+ | $23.18 | $23.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The box measures 222.00mm (8.740") in length, 145.80mm (5.740") in width, and 75.18mm (2.960") in height.
It is made of plastic, polycarbonate.
The body is gray and the cover/door is clear.
It is rated IP65, NEMA 1, 2, 4, 4X, 12, 13, and UL-508.
Yes, it includes card guides and PCB supports.
The material flammability rating is UL94 HB.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
