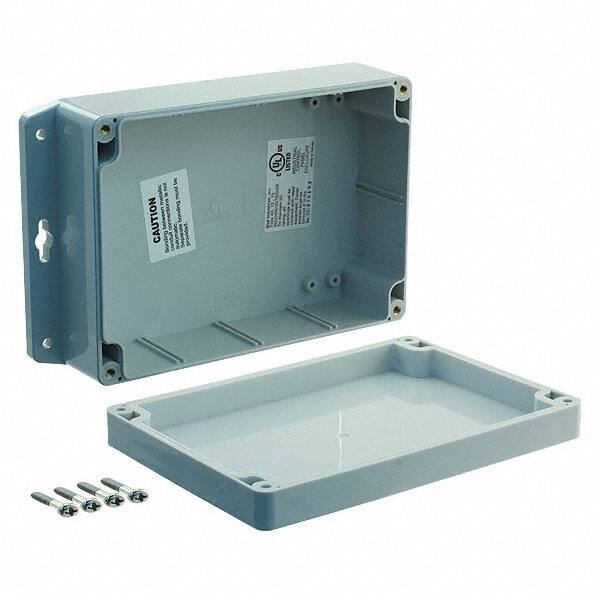

PN-1324-MB Gray polycarbonate box with cover from Bud Industries, measuring 6.732"L x 4.764"W x 2.165"H. Rated IP65, NEMA 1,2,4,4X,12,13, and UL-508.
Mfr Part #:

PN-1324-MB

Available from 1 distributors
Mfr Name: Bud Industries
Bud Industries
Gray polycarbonate box with cover from Bud Industries, measuring 6.732"L x 4.764"W x 2.165"H. Rated IP65, NEMA 1,2,4,4X,12,13, and UL-508.
✓ Total Stock: 105 pcs
$ Price Range: $17.25 - $22.20

PN-1324-MB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
105 pcs
On Request
105 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PN-1324-MB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Container Type
Design
Features
Height
Length
Material
Material Flammability Rating
Ratings
Storage Temperature
Thickness
Width
View Similar Products (0)

PN-1324-MB Description

Short technical summary and product information.

The Bud Industries PN-1324-MB is a gray polycarbonate enclosure box with a cover included. It measures 6.732 inches (170.99mm) in length, 4.764 inches (121.01mm) in width, and 2.165 inches (55.00mm) in height, with a wall thickness of 0.118 inches (3.00mm). The box is constructed from UV-stabilized polycarbonate with a UL94 HB flammability rating and a service temperature range of -40°C to +120°C.



This enclosure features a silicone sponge gasket and is designed to meet NEMA 1, 2, 4, 4X, 12, 13 and IEC529-IP65 requirements. It includes card guides, mounting flanges, and PCB supports. The box has four M4x0.7 x 8mm threaded brass inserts and mounting holes that accept M4 or #8 pan head screws. Four M4x0.7 x 20mm stainless steel screws are supplied for cover assembly. Mounting bosses accept M3 x 4mm or #4 x 3/16" self-tapping screws.

PN-1324-MB Quick Information

Product Type: Box
Series: PN Series
Canonical Name: Bud Industries PN-1324-MB Gray Polycarbonate Box with Cover
Subcategory: Plastic Boxes

PN-1324-MB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PN-1324-MB Estimated Pricing

Qty Low High
1+ $22.20 $22.20
5+ $21.99 $21.99
10+ $18.50 $18.50
50+ $18.49 $18.49
100+ $17.25 $17.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

PN-1324-MB Features

  • Gray polycarbonate box with cover included.
  • Rated IP65 and NEMA 4X for protection.
  • UL94 HB flammability rated material.
  • Includes card guides and PCB supports.
  • Supplied with stainless steel mounting screws.

PN-1324-MB Applications

  • Suitable for outdoor electrical enclosures.
  • Ideal for industrial control cabinets.
  • Used in NEMA 4X rated applications.
  • Good for PCB housing with card guides.

PN-1324-MB FAQs

7 frequently asked questions generated from this part’s specifications.
What are the dimensions of the PN-1324-MB box?

The box measures 6.732"L x 4.764"W x 2.165"H (170.99mm x 121.01mm x 55.00mm).

What material is the PN-1324-MB made from?

It is made from plastic, polycarbonate with a gray color.

What is the flammability rating of the PN-1324-MB?

The material flammability rating is UL94 HB.

What environmental ratings does the PN-1324-MB meet?

It meets IP65, NEMA 1,2,4,4X,12,13, and UL-508 ratings.

What is the operating temperature range for the PN-1324-MB?

The service temperature range is -40°C to +120°C.

Does the PN-1324-MB include a cover?

Yes, the design includes a cover.

What type of gasket does the PN-1324-MB use?

It uses a silicone sponge gasket.
