PMT-D2V100W1AA
Delta Electronics
The Delta Electronics PMT-D2V100W1AA is a 100W AC/DC converter with a 5V output and 3A current rating. It features an enclosed type and chassis mount.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

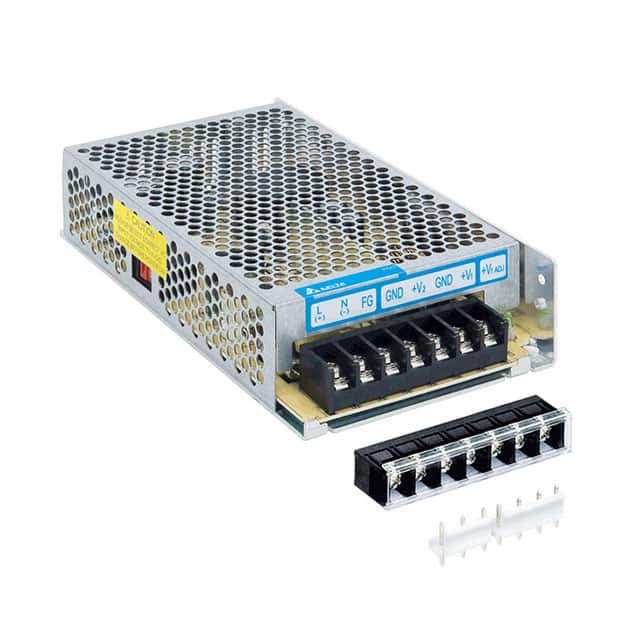

The Delta Electronics PMT-D2V100W1AG is a 100W panel mount AC/DC power supply offering dual outputs of 24Vdc and 5Vdc. It provides a selectable AC input voltage range of 88-132Vac and 176-264Vac, allowing for versatile global application.
Designed for reliability, this converter boasts a high MTBF of over 700,000 hours and an expected life time of 10 years. It operates efficiently with over 84% efficiency at 100% load and features protections against overvoltage, overload, and short circuits.
The unit measures 178 x 97 x 38 mm and is suitable for chassis mounting. It conforms to harmonic current standards IEC/EN 61000-3-2 Class A and is CB Certified for worldwide use, making it a robust choice for ITE (Commercial) applications.
The input voltage range is selectable via a switch: 88-132VAC or 176-264VAC.
The converter provides 24Vdc at 3.5A and 5Vdc at 3.0A.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 178.0mm x 97.0mm x 38.0mm (7.01" x 3.82" x 1.50").
It is certified to CB, CCC, CE, cURus, and TUVgs standards.
Typical efficiency is greater than 84% at full load and 230VAC.
The MTBF is greater than 700,000 hours per Telcordia SR-332.
