| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

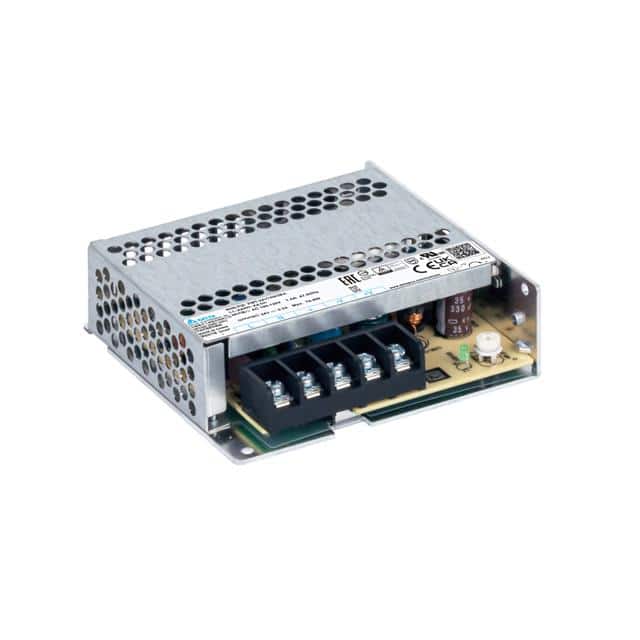

This Delta Electronics PMT-48V75W2BA is an enclosed AC/DC converter designed for reliable power conversion. It provides a 48V output with a power rating of 77W and a current of 1.6A.
The converter operates with 90% efficiency and features adjustable output and universal input capabilities, making it suitable for a wide range of applications including ITE (Commercial) and Household Appliances. Its chassis mount design facilitates integration into various systems.
Key specifications include a wide operating temperature range from -30°C to 70°C (with derating) and an isolation voltage of 4 kV. The unit meets several standard safety and compliance requirements, including CB, CE, cURus, EAC, KC, TUV, and UKCA certifications, and adheres to standards such as 60335-1, 60950-1, and 62368-1.
With dimensions of 99.0mm x 97.0mm x 30.0mm, this converter offers a compact solution for power needs. It is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The PMT-48V75W2BA converter has a power output of 77W.
The output voltage is 48V.
The PMT-48V75W2BA supports chassis mounting.
The operating temperature range is -30°C to 70°C, with derating.
The dimensions are 99.0mm in length, 97.0mm in width, and 30.0mm in height.
