| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

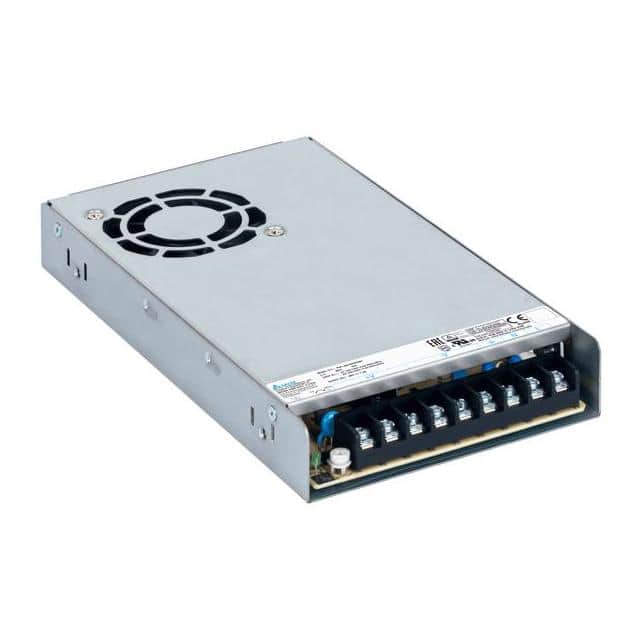

This Delta Electronics PMT-48V350W2BR is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a single output of 48V with a maximum power of 350W and a current rating of 7.3A.
The converter features adjustable output and universal input, making it versatile for various power needs. Its efficiency is rated at 88%, and it operates within a temperature range of -30°C to 70°C with derating.
Designed for chassis mounting, this unit has dimensions of 215.0mm x 115.0mm x 30.0mm. It meets safety standards including 60950-1 and 62368-1, and carries approvals from CB, CE, cURus, EAC, KC, TUV, and UKCA.
The RoHS status is compliant, and it has an MSL rating of 1.
The output voltage is 3 kV.
The maximum output current is 7.3 A.
The operating temperature range is -30°C to 70°C (With Derating).
The power rating is 350W.
It is designed for chassis mount.
