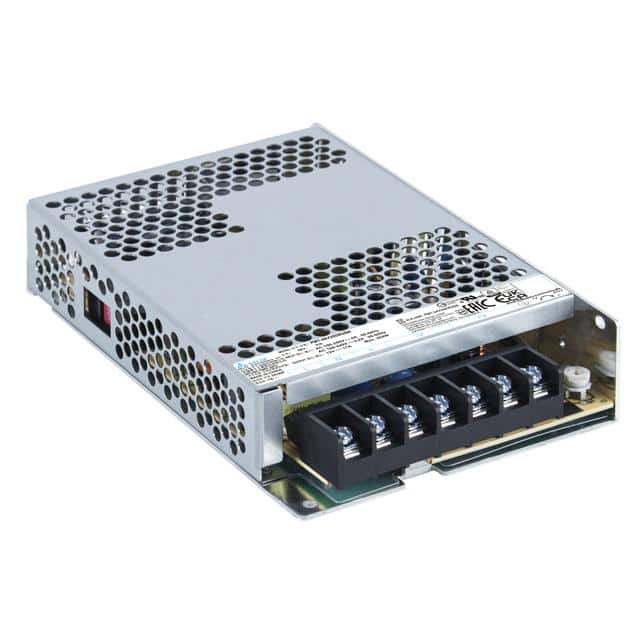

The Delta Electronics PMT-48V200W2BR is an enclosed AC/DC converter designed for reliable power conversion. It offers a 48V output voltage and a maximum power of 211W, with a current rating of 4.4A.
Key features include adjustable output and universal input, making it versatile for various applications. The converter operates within a temperature range of -30°C to 70°C with derating and boasts an efficiency of 91%.
Designed for chassis mounting, this unit meets safety standards including CB, CE, cURus, EAC, KC, TUV, and UKCA. Its dimensions are 159.0mm x 97.0mm x 30.0mm. The converter is suitable for applications such as household appliances and ITE (Commercial) environments.
Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1 Unlimited. It adheres to standard numbers 60335-1, 60950-1, and 62368-1.
The efficiency is 91%.
The isolation voltage is 4 kV.
The operating temperature range is -30°C to 70°C with derating.
It is approved by CB, CE, cURus, EAC, KC, TUV, and UKCA.
The dimensions are 159.0mm x 97.0mm x 30.0mm (6.26" x 3.82" x 1.18").
The mounting type is chassis mount.
It is suitable for household appliances and ITE (commercial) equipment.
