| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

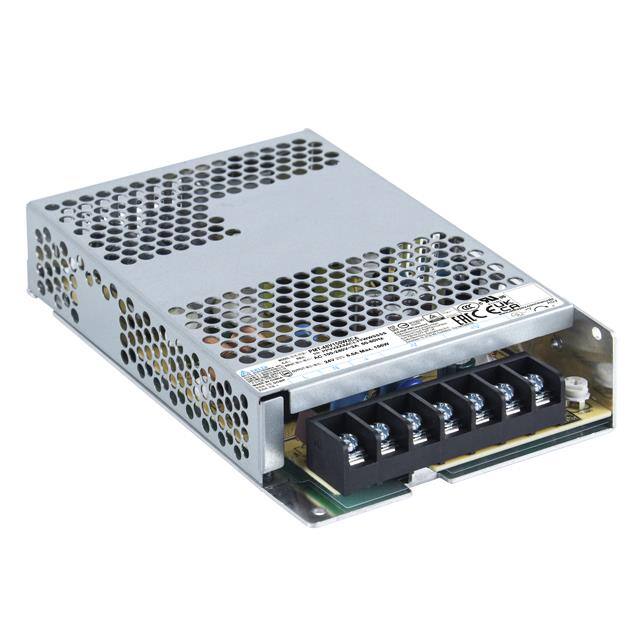

This Delta Electronics PMT-48V150W2CA is an enclosed AC/DC power supply designed for various applications, including household appliances and ITE commercial equipment. It provides a stable 48V output with a maximum power of 158W and a current rating of 3.3A.
The converter features adjustable output and universal input capabilities, enhancing its flexibility in different system designs. Its efficiency is rated at 91%, contributing to energy savings. The unit is designed for chassis mounting, with dimensions of 159.0mm x 97.0mm x 30.0mm.
Key specifications include an operating temperature range of -30°C to 70°C with derating, and an isolation voltage of 4 kV. It complies with several safety standards, including 60335-1, 60950-1, and 62368-1, and holds approvals from agencies such as CB, CE, cURus, EAC, KC, TUV, and UKCA.
The output voltage is 48V.
The maximum power output is 158W.
It uses chassis mount.
The operating temperature range is -30°C to 70°C, with derating.
Key features include adjustable output and universal input.
