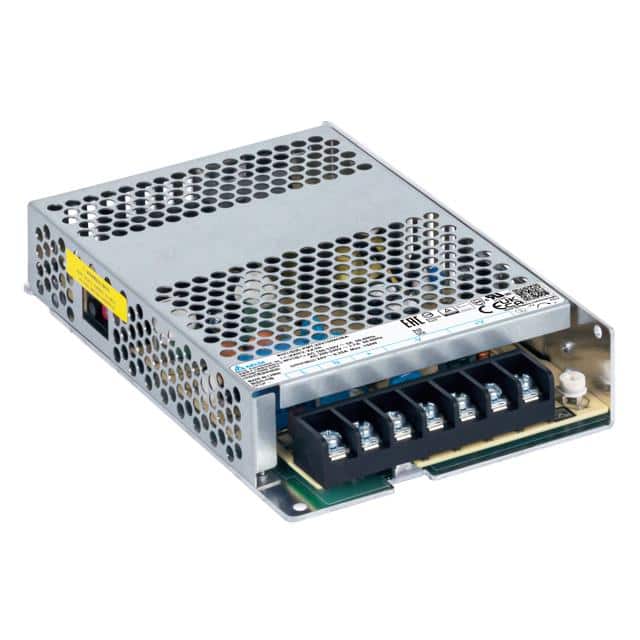

This Delta Electronics PMT-48V150W2BA is an enclosed AC/DC power supply converter designed for various applications. It delivers 150W of power with an adjustable output and universal input capability.
The converter is designed for chassis mounting and has dimensions of 159.0mm x 97.0mm x 30.0mm. It operates with an efficiency of 85.8% and features an isolation voltage of 3.75 kV.
Key features include adjustable output and universal input, making it suitable for ITE (Commercial) and household appliance applications. It is certified by CB, CCC, CE, cTUVus, and TUV.
The operating temperature range is -30°C to 70°C with derating. This model has a single output and complies with standards such as 60335-1, 60950-1, and 62368-1.
85.8%.
3.75 kV.
CB, CCC, CE, cTUVus, TUV.
159mm x 97mm x 30mm.
Chassis mount.
-30°C to 70°C with derating.
