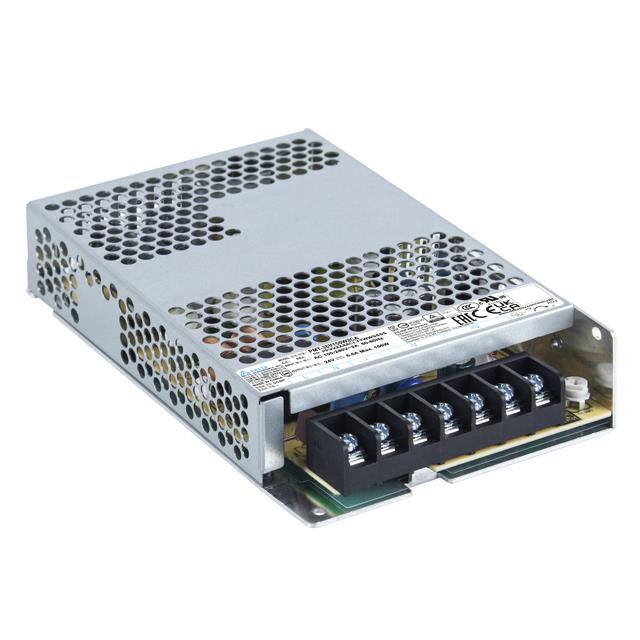

This Delta Electronics PMT-36V150W2CA is an enclosed AC/DC power supply designed for various applications. It provides a stable 36Vdc output voltage with a maximum current of 4.3A, delivering up to 154.8W of power. The unit accepts a wide input voltage range of 90~264Vac, making it suitable for global use.
Key features include an adjustable output voltage and a universal input. The power supply operates within a temperature range of -30°C to +70°C and is convection cooled. Its compact dimensions (159.0mm x 97.0mm x 30.0mm) and chassis mount type facilitate integration into various systems.
Safety certifications include IEC/EN 62368-1 and UL 62368-1, along with other agency approvals like CE, cURus, and TUV. The power supply also meets standards such as 60335-1 and 60950-1. It is designed for applications in household appliances and ITE (Commercial) environments, operating efficiently up to 5000m altitude.
The input voltage range is 90~264Vac.
It provides 36Vdc output at up to 4.3A.
The maximum power is 154.8W.
The operating temperature range is -30°C to +70°C.
Typical efficiency is 90%.
Isolation voltage is 4kV.
Dimensions are 159.0mm x 97.0mm x 30.0mm and it is chassis mount.
