| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

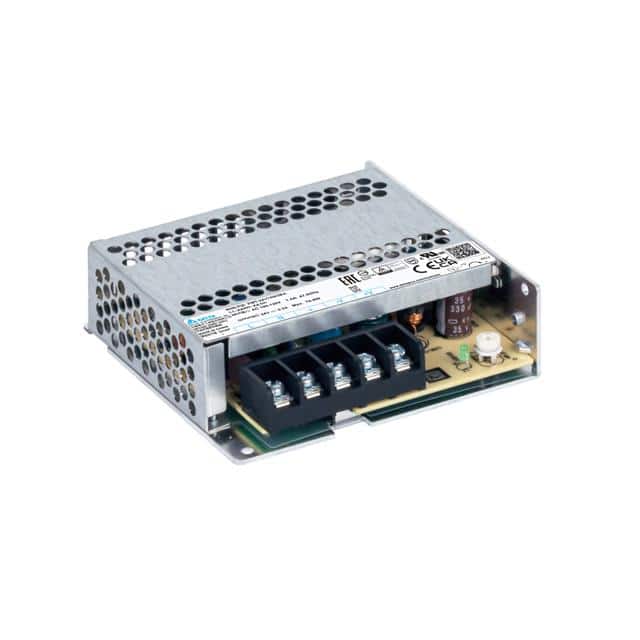

The Delta Electronics PMT-30V75W2BA is a 75W AC/DC enclosed power supply from the PMT2 series, designed for reliability and efficiency in ITE and household applications. It offers a single output of 30VDC at 2.5A, with a universal AC input voltage range of 90-264 VAC.
Key features include a low profile design with a height of 30mm, making it suitable for space-constrained applications. The power supply operates efficiently with a typical efficiency of 89.5% and has a low no-load power consumption of less than 0.3W. It is built to withstand a wide operating temperature range from -30°C to 70°C, with support for cold starts at -40°C.
This power supply complies with major safety standards including IEC/EN 60335-1, IEC/EN 61558-1, IEC/EN 61558-2-16, IEC 60950-1, and IEC/EN/UL 62368-1, and carries certifications such as CB, CE, cURus, EAC, KC, TUV, and UKCA. It also conforms to harmonic current standards IEC/EN 61000-3-2 Class A. The unit is chassis mounted and has dimensions of 99 x 97 x 30 mm.
The Delta Electronics PMT-30V75W2BA provides a 30VDC output voltage at a 2.5A current.
The maximum output power for the PMT-30V75W2BA is 75W.
The power supply accepts a universal AC input voltage range of 90-264 VAC.
The operating temperature range is -30°C to 70°C, with derating applied.
The dimensions are 99.0mm in length, 97.0mm in width, and 30.0mm in height.
It complies with IEC/EN 60335-1, IEC/EN 60950-1, and IEC/EN/UL 62368-1.
Yes, it has household appliance approvals to IEC/EN 60335-1 and IEC/EN 61558-2-16.
