| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

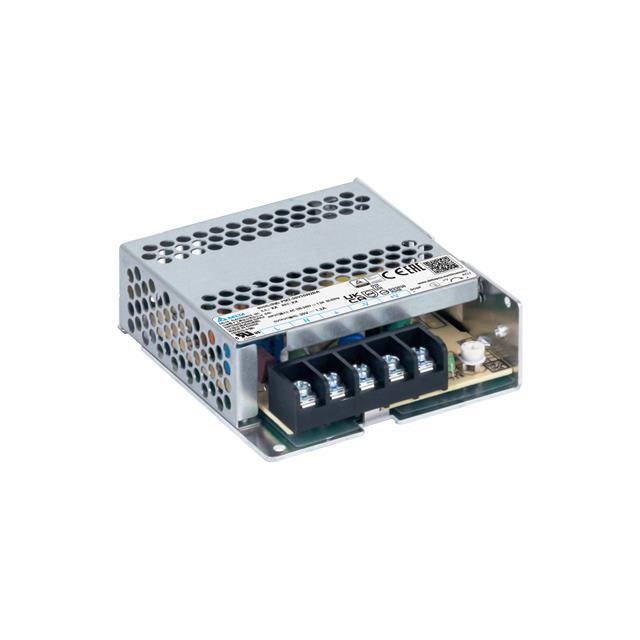

The Delta Electronics PMT-30V35W2BA is an enclosed AC/DC converter designed for applications requiring a stable 30V output and delivering up to 35W of power. This unit features a chassis mount for easy integration into various systems.
Key electrical specifications include an efficiency of 87.5% and a power rating of 36W. The converter offers adjustable output and a universal input, making it versatile for different power sources. It is designed to operate within a temperature range of -30°C to 70°C, with derating applied at higher temperatures.
Compliance and safety are addressed with approval agencies including CB, CE, cURus, EAC, KC, TUV, and UKCA. The unit meets standard numbers 60335-1, 60950-1, and 62368-1. Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status.
Mechanical dimensions are 99.0mm in length, 82.0mm in width, and 28.9mm in height. The applications for this converter include household appliances and ITE (Commercial) equipment.
The PMT-30V35W2BA is an enclosed AC/DC converter.
The PMT-30V35W2BA is chassis mounted.
The efficiency of the PMT-30V35W2BA is 87.5%.
Key features include adjustable output and universal input.
The isolation voltage is 4 kV.
It is suitable for Household Appliances and ITE (Commercial) applications.
The operating temperature range is -30°C to 70°C, with derating.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
The REACH status is Unaffected.
