| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

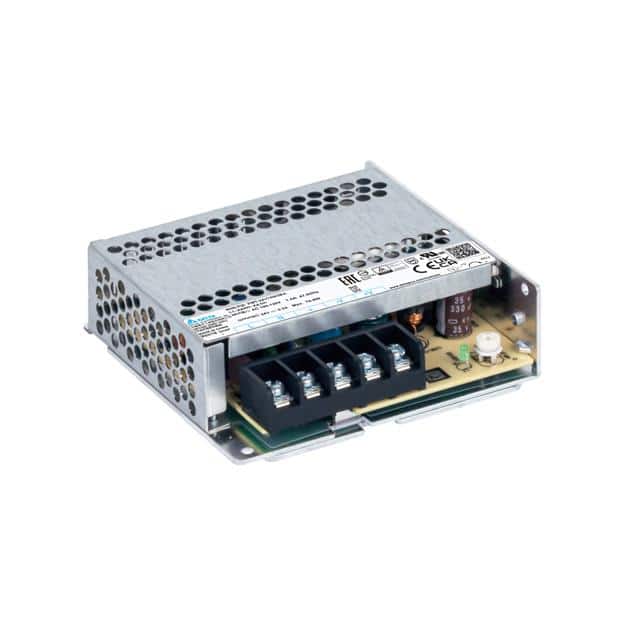

This Delta Electronics PMT-24V75W2BA is an enclosed AC/DC power supply converter with a power output of 75W and a voltage of 24V. It features adjustable output and universal input capabilities, making it versatile for various applications.
The converter is designed for chassis mounting, providing a secure and stable installation. Its dimensions are 99.0mm x 97.0mm x 30.0mm (3.90" x 3.82" x 1.18"). The operating temperature range is -30°C to 70°C with derating.
Key electrical specifications include an efficiency of 89.5% and a current rating of 3.2A. It is approved by multiple agencies including CB, CE, cURus, EAC, KC, TUV, and UKCA, and complies with standard numbers 60950-1 and 62368-1.
This AC/DC converter is suitable for ITE (Commercial) applications and offers a high insulation voltage of 4 kV.
The PMT-24V75W2BA provides a single output of 24V at 3.2A.
It is rated at 75W.
The efficiency is 89.5%.
-30°C to 70°C with derating.
It is designed for chassis mounting.
99.0mm x 97.0mm x 30.0mm (3.90" x 3.82" x 1.18").
It holds approvals from CB, CE, cURus, EAC, KC, TUV, and UKCA.
