| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

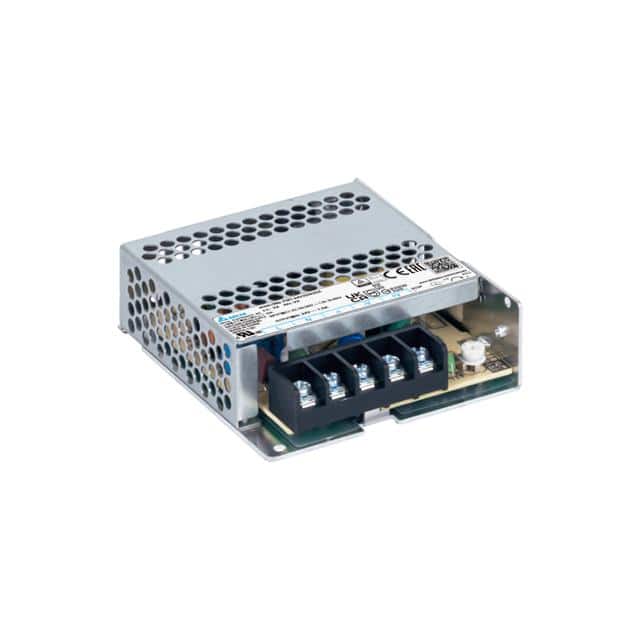

This Delta Electronics PMT-24V35W2BA is an enclosed AC/DC converter designed for ITE (Commercial) applications. It offers a power output of 35W and an output current of 1.5A.
The converter features adjustable output and universal input, providing flexibility in various system designs. Its dimensions are 99.0mm x 82.0mm x 29.0mm, and it is designed for chassis mounting.
Key electrical specifications include an efficiency of 88.5% and a voltage rating of 4 kV. The operating temperature range is -30°C to 70°C with derating. It complies with safety standards such as 60335-1, 60950-1, and 62368-1, and holds approvals from CB, CE, cURus, EAC, KC, TUV, and UKCA.
The power rating is 35W.
The output current is 1.5 A.
It supports chassis mount.
Key features include adjustable output and universal input.
The operating temperature range is -30°C to 70°C (With Derating).
It complies with 60335-1, 60950-1, and 62368-1.
