PMT-24V35W1AH
Delta Electronics

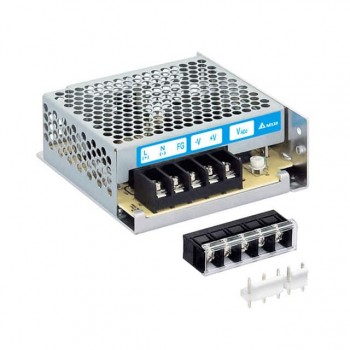

The Delta Electronics PMT-24V35W1AH is an enclosed AC/DC converter with a 35W power rating and 24V output. It features adjustable output and universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
The Delta Electronics PMT-24V35W1AG is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 35W with a single 24V output voltage and a maximum current of 1.46A.
This converter operates with a wide input voltage range of 85 to 264 VAC and boasts an efficiency of 85%. Key features include adjustable output and universal input capabilities, making it versatile for various power needs. The isolation voltage is rated at 3 kV.
Designed for practical integration, the PMT-24V35W1AG features a chassis mount type. Its dimensions are 98.0mm in length, 98.0mm in width, and 38.0mm in height. The operating temperature range is -10°C to 70°C, with derating applied at higher temperatures.
Compliance is indicated by approval agencies including CB, CCC, CE, cURus, and TUV. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected.
The input voltage range is 85 to 264 VAC.
The output voltage is 24V and the maximum output current is 1.46A.
The power rating is 35W.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount mounting.
The efficiency is 85%.
It is approved by CB, CCC, CE, cURus, and TUV.
