Mfr Part #:

PMT-24V350W2BR

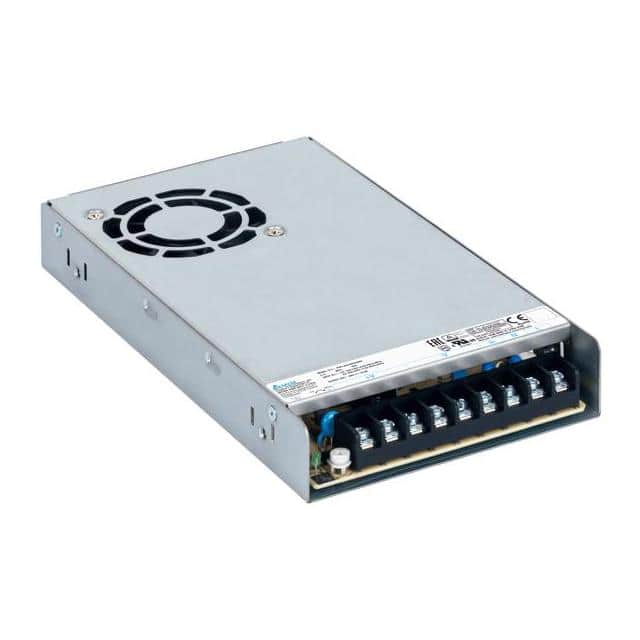

The Delta Electronics PMT-24V350W2BR is an enclosed AC DC converter with 350W power output. It features adjustable output and universal input, suitable for ITE commercial applications.

Stock on Request

PMT-24V350W2BR Description

Short technical summary and product information.

This Delta Electronics PMT-24V350W2BR is an enclosed AC DC converter designed for reliable power conversion. It delivers 350W of power with an output voltage of 3 kV and current of 14.6 A. The converter operates within a temperature range of -30°C to 70°C with derating.

Featuring adjustable output and universal input, this unit is built for versatility. Its dimensions are 215.0mm x 115.0mm x 30.0mm, and it is designed for chassis mounting. The efficiency is rated at 87%.

Compliance is assured with approvals from CB, CE, cURus, EAC, KC, TUV, and UKCA, adhering to standards like 60950-1 and 62368-1. The RoHS status is RoHS3 Compliant, and it has an MSL of 1 Unlimited.

PMT-24V350W2BR Quick Information

Product Type: AC DC Converter

Canonical Name: Delta Electronics PMT-24V350W2BR AC/DC Converter

Subcategory: AC DC Converters

PMT-24V350W2BR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PMT-24V350W2BR Features

Enclosed AC DC converter with 350W power.
Adjustable output and universal input.
Chassis mount for easy integration.
Wide operating temperature range.
RoHS3 Compliant and meets safety standards.

PMT-24V350W2BR Applications

Powers commercial information technology equipment racks.
Supplies regulated voltage to industrial control panels.
Integrates into telecommunications base station hardware.
Provides isolated power for medical imaging devices.

PMT-24V350W2BR FAQs

5 frequently asked questions generated from this part’s specifications.

What is the power output of the Delta Electronics PMT-24V350W2BR?

The power output is 350W.

What is the operating temperature range for this AC DC converter?

The operating temperature range is -30°C to 70°C (With Derating).

What are the dimensions of the PMT-24V350W2BR?

The dimensions are 215.0mm x 115.0mm x 30.0mm.

What is the RoHS status of the Delta Electronics PMT-24V350W2BR?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level is 1 Unlimited.

Category	AC DC Converters
Manufacturer Name	Delta Electronics
Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, EAC, KC, TUV, UKCA
Current	14.6 A
Efficiency	87%
Features	Adjustable Output, Universal Input
Height	30.0mm (1.18")
Industrial Grade	Yes
Length	215.0mm (8.46")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 70°C (With Derating)
Power (Watts)	350W
Standard Number	60950-1; 62368-1
Type	Enclosed
Voltage	3 kV
Width	115.0mm (4.53")
