| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

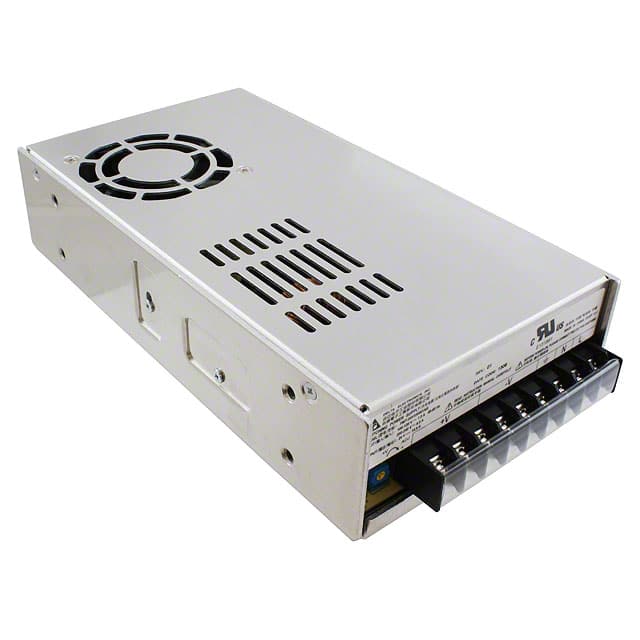

The Delta Electronics PMT-24V350W1AG is a 350W AC/DC power supply designed for industrial applications. It provides a stable 24Vdc output at 14.6A, suitable for various ITE (Commercial) applications.
Key features include a selectable AC input voltage range (90-132VAC and 180-264VAC), an efficiency of over 87% at 230VAC, and comprehensive protections against short circuit, overvoltage, overload, and over-temperature conditions. The unit is built with a full aluminum casing for durability and corrosion resistance.
This power supply is designed for chassis mounting and operates within a wide temperature range of -10°C to +70°C. It meets safety standards including CB Scheme and UL certification, with standard numbers 50581, 55024, 55032, and 60950-1.
With a MTBF exceeding 700,000 hours and an expected life time of 10 years, the PMT-24V350W1AG offers reliability for demanding environments.
The nominal output voltage is 24Vdc, with an adjustment range of 20.0-26.4Vdc.
The rated output current is 14.6A.
The input voltage range is selectable between 90-132VAC and 180-264VAC.
The operating temperature range is -10°C to +70°C, with derating.
The dimensions are 215 x 115 x 50 mm (8.46 x 4.53 x 1.97 inch).
The MTBF is rated at over 700,000 hours as per Telcordia SR-332.
