PMT-24V150W1AA
Delta Electronics

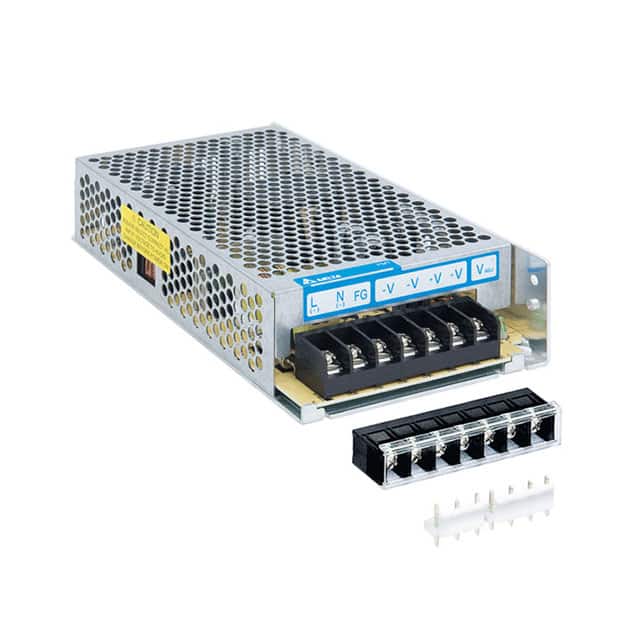

The Delta Electronics PMT-24V150W1AA is an enclosed AC/DC converter with a 150W power rating and 24V output. It features chassis mounting and adjustable output.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
This Delta Electronics PMT-24V150W1AH is an enclosed AC/DC power supply designed for industrial and commercial applications. It provides a 150W output power with an adjustable output voltage and a current rating of 6.5A. The converter operates with an efficiency of 89% and features a wide operating temperature range from -10°C to 70°C with derating.
Designed for chassis mounting, this unit offers a robust solution for power conversion needs. Its dimensions are 178.0mm in length, 97.0mm in width, and 38.0mm in height. The device is approved by multiple agencies including CB, CCC, CE, cURus, and TUV, ensuring compliance with international standards.
Key electrical specifications include a 3kV voltage rating and a single output. The RoHS status is compliant with RoHS3, and it has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
The output voltage is 24V and the current is 6.5A.
The power rating is 150W.
The efficiency is 89%.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount.
The dimensions are 178.0mm length, 97.0mm width, and 38.0mm height.
It has CB, CCC, CE, cURus, and TUV approvals.
