| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

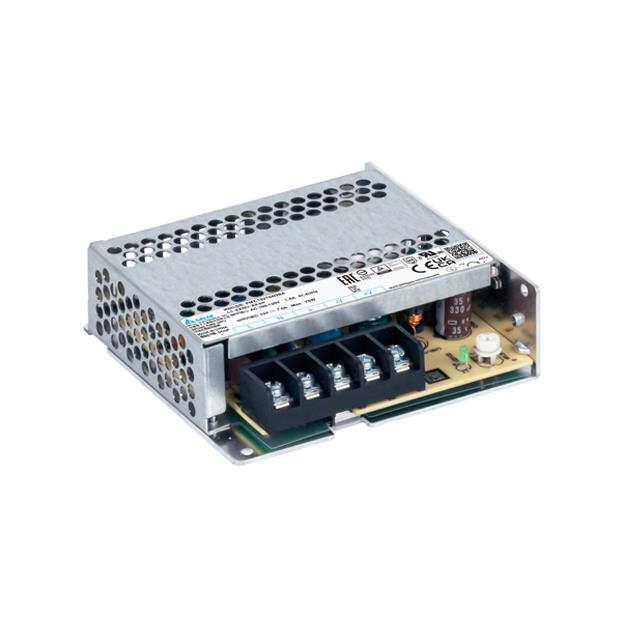

This Delta Electronics PMT-15V75W2BA is an enclosed AC/DC converter with a power rating of 75W and an output voltage of 15V at 5A. It is designed for chassis mounting and offers features such as adjustable output and universal input.
The converter operates with 88% efficiency and provides 4kV isolation voltage. Its dimensions are 99.0mm x 97.0mm x 30.0mm. The operating temperature range is -30°C to 70°C with derating.
This unit is suitable for applications in household appliances and ITE (Commercial) sectors. It meets standards including 60335-1, 60950-1, and 62368-1, and holds approvals from CB, CE, cURus, EAC, KC, TUV, and UKCA.
15V.
75W.
1 output.
-30°C to 70°C with derating.
99.0mm x 97.0mm x 30.0mm.
Chassis mount.
CB, CE, cURus, EAC, KC, TUV, UKCA.
