| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

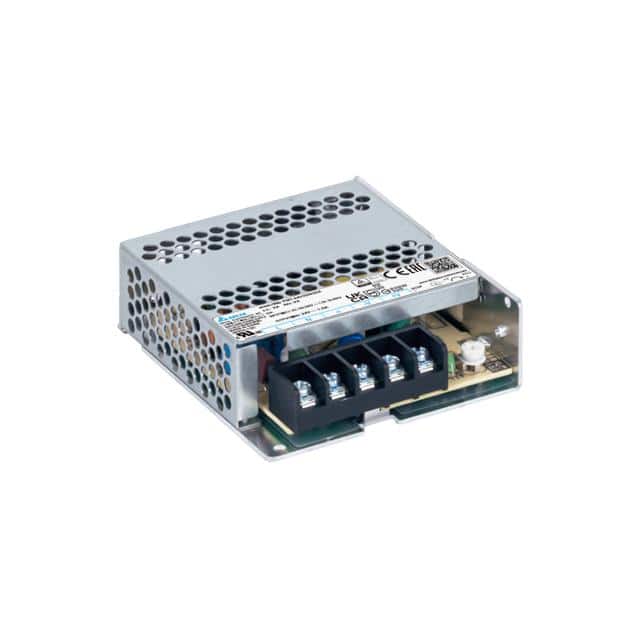

The Delta Electronics PMT-15V50W2BA is an enclosed AC/DC converter designed for applications requiring a stable 15V output and up to 50W of power. This unit features adjustable output and universal input, making it versatile for various power supply needs.
With a chassis mount type, it is suitable for integration into systems where secure mounting is essential. The converter operates efficiently with an 86% rating and is designed to function within an operating temperature range of -30°C to 70°C, with derating applied at higher temperatures.
Key specifications include a current rating of 2.2A, an insulation voltage of 3.75 kV, and compliance with standards such as 60335-1, 60950-1, and 62368-1. It is approved by agencies including CB, CCC, CE, cTUVus, and TUV, indicating its suitability for commercial and household appliance applications, as well as ITE (Information Technology Equipment).
The dimensions are 99.0mm in length, 82.0mm in width, and 30.0mm in height. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The output is 15V at 2.2A.
The power rating is 50W.
The efficiency is 86%.
The operating temperature range is -30°C to 70°C with derating.
It is designed for chassis mount.
It complies with standards 60335-1, 60950-1, and 62368-1.
