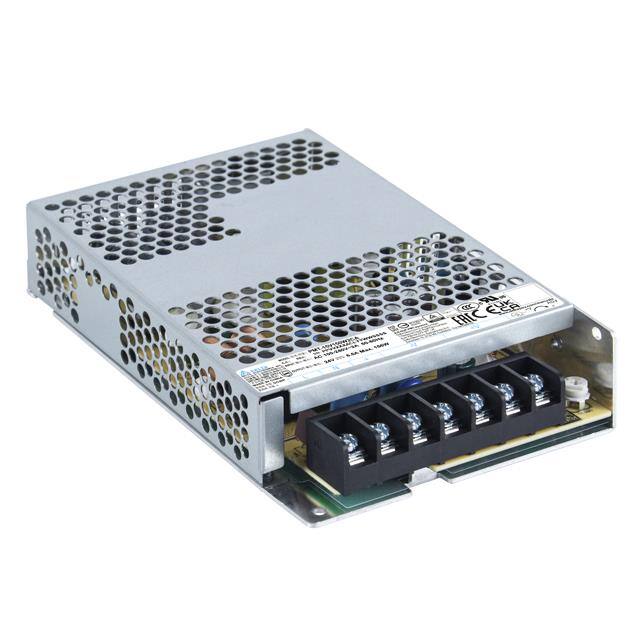

The Delta Electronics PMT-15V150W2CA is an enclosed AC/DC converter designed for various applications. It provides a single 15V output with a maximum current of 10A, delivering a total power of 150W.
Key electrical specifications include a wide input voltage range of 90 to 264 VAC and an efficiency of 89%. The converter offers an isolation voltage of 4 kV. It is suitable for applications requiring adjustable output and universal input.
Mechanically, the unit measures 159.0mm x 97.0mm x 30.0mm and is designed for chassis mounting. The operating temperature range is -30°C to 70°C with derating. It complies with standards such as 60335-1, 60950-1, and 62368-1.
This AC/DC converter is approved by agencies including CB, CE, cURus, EAC, KC, TUV, and UKCA, making it suitable for household appliances and ITE (Commercial) applications.
The PMT-15V150W2CA provides a 15V output voltage at 10A.
The power rating for this AC/DC converter is 150W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -30°C to 70°C, with derating.
The dimensions are 159.0mm x 97.0mm x 30.0mm.
It uses chassis mount.
It complies with 60335-1, 60950-1, and 62368-1.
