| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

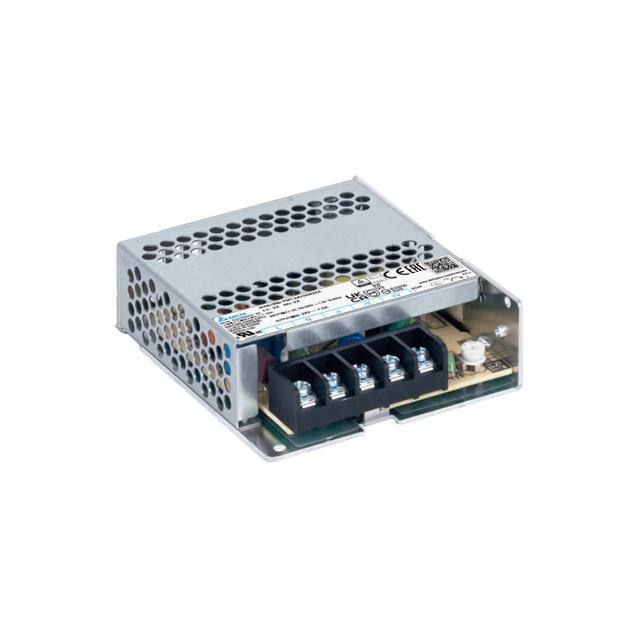

This Delta Electronics PMT-12V35W2BA is an enclosed AC/DC power converter designed for various applications, including household appliances and ITE (Commercial) use. It delivers a power output of 35W with a 12V rating and a current of 3A.
The converter features adjustable output and universal input, providing flexibility in power management. Its operating temperature range is -30°C to 70°C with derating. The unit is designed for chassis mounting and has dimensions of 99.0mm x 82.0mm x 29.0mm.
Key electrical specifications include an efficiency of 88.5% and an isolation voltage of 4 kV. It adheres to standard numbers such as 60335-1, 60950-1, and 62368-1, and carries approvals from CB, CE, cURus, EAC, KC, TUV, and UKCA.
The output voltage is 12V DC and the output current is 3A.
The power rating is 35W.
The operating temperature range is -30°C to 70°C with derating.
The dimensions are 99.0mm length, 82.0mm width, and 29.0mm height.
It uses chassis mount mounting.
The efficiency is 88.5%.
It holds CB, CE, cURus, EAC, KC, TUV, and UKCA approvals.
