| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

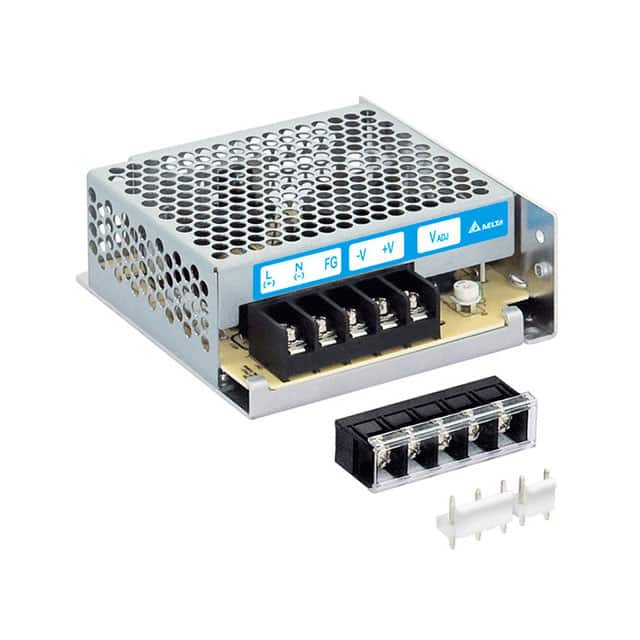

The Delta Electronics PMT-12V35W1AH is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 35W with a single 12V output.
Key electrical specifications include an efficiency of 84% and a current rating of 2.92A. The converter features adjustable output and universal input capabilities, making it versatile for various power needs. It also provides 3kV of isolation voltage.
Designed for chassis mounting, this power supply operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 98.0mm x 98.0mm x 38.0mm.
Compliance certifications include CB, CCC, CE, cURus, and TUV. The product is listed as RoHS3 Compliant, Moisture Sensitivity Level 1, and REACH Unaffected.
The operating temperature range is -10°C to 70°C with derating.
The output is 12V at 2.92A, providing 35W of power.
It uses chassis mount packaging.
The efficiency is 84%.
It is approved to CB, CCC, CE, cURus, and TUV standards.
