| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

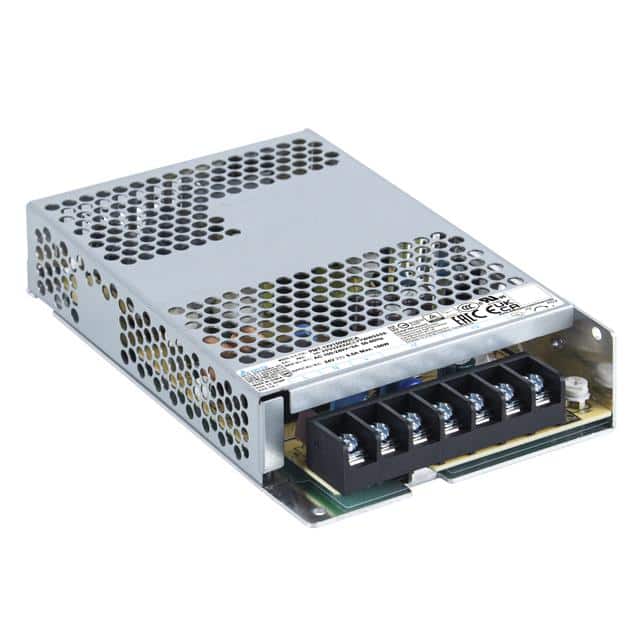

This Delta Electronics PMT-12V150W2CA is an enclosed AC/DC converter designed for reliable power conversion. It provides a power output of 150W with an adjustable output and universal input, making it versatile for various applications.
The converter operates with an efficiency of 88% and features a voltage rating of 4 kV for protection. Its dimensions are 159.0mm x 97.0mm x 30.0mm, and it is designed for chassis mounting.
Key features include a current rating of 12.5A and an operating temperature range of -30°C to 70°C with derating. It is compliant with multiple standards including 60335-1, 60950-1, and 62368-1, and holds approvals from CB, CE, cURus, EAC, KC, TUV, and UKCA.
Applications for this AC/DC converter include household appliances and ITE (Commercial) equipment, offering a robust power solution.
The power output is 150W.
It is an enclosed AC/DC converter.
The dimensions are 159.0mm x 97.0mm x 30.0mm.
The operating temperature range is -30°C to 70°C (With Derating).
It complies with 60335-1, 60950-1, and 62368-1.
