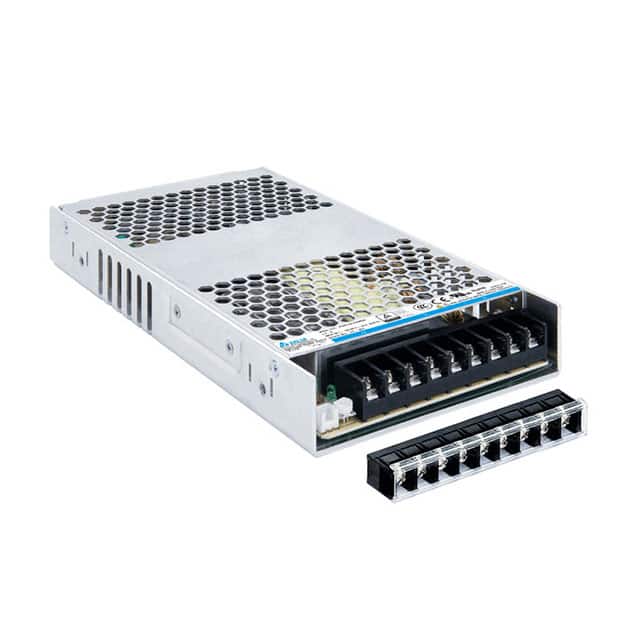

The Delta Electronics PMR-5V320WDCA is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 320W of power with a 60A output current and a 5V output voltage.
Key features include adjustable output, Power Factor Correction (PFC), and universal input, making it suitable for a wide range of power supply needs. The converter operates with an efficiency of 84% and has an input voltage rating of 3 kV.
Designed for chassis mounting, this converter has dimensions of 215.0mm x 115.0mm x 30.0mm. It operates within a temperature range of -10°C to 70°C with derating. Approval agencies include CB, CE, CCC, cURus, and TUV.
Compliance includes RoHS3, MSL 1, and REACH unaffected status. This model offers a single output and is built for reliable performance in commercial environments.
The output voltage is 5V and the output current is 60A.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount mounting.
The efficiency is 84%.
The dimensions are 215.0mm x 115.0mm x 30.0mm (8.46" x 4.53" x 1.18").
It is approved by CB, CE, CCC, cURus, and TUV.
