PMR-5V320WCAA
Delta Electronics

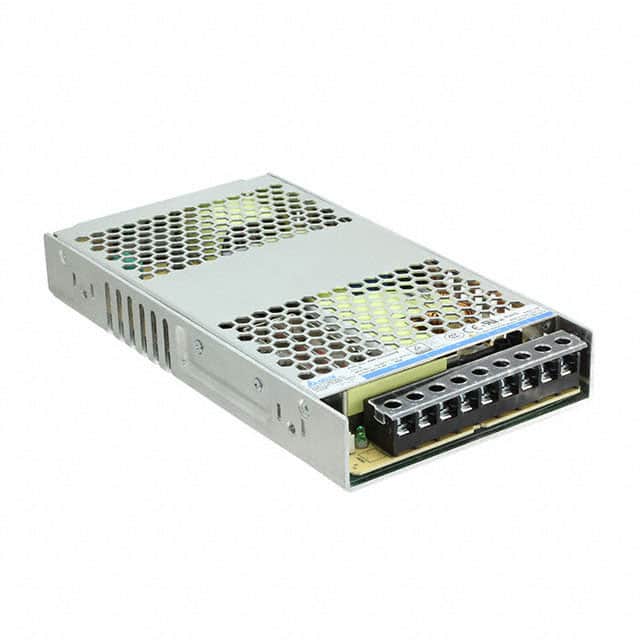

The Delta Electronics PMR-5V320WCAA is an enclosed AC/DC converter with 320W power output and 60A current. It features chassis mounting and universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |
This Delta Electronics PMR-5V320WDBA is an AC/DC converter designed for ITE (Commercial) applications. It provides a 5V output with a maximum power of 320W and a current rating of 60A.
The converter features an enclosed design with conformal coating for added protection. It supports chassis mounting and includes features such as adjustable output, Power Factor Correction (PFC), and universal input. The operating temperature range is -10°C to 70°C with derating.
Key electrical specifications include a voltage rating of 3kV and an efficiency of 84%. The dimensions are 215.0mm in length, 115.0mm in width, and 30.0mm in height.
This unit is approved by CB, CE, CCC, cURus, and TUV, indicating compliance with various international safety standards. It has a single output and is RoHS3 compliant.
The output is 5V at 60A.
320W.
-10°C to 70°C with derating.
Chassis mount.
CB, CE, CCC, cURus, TUV.
84%.
