| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

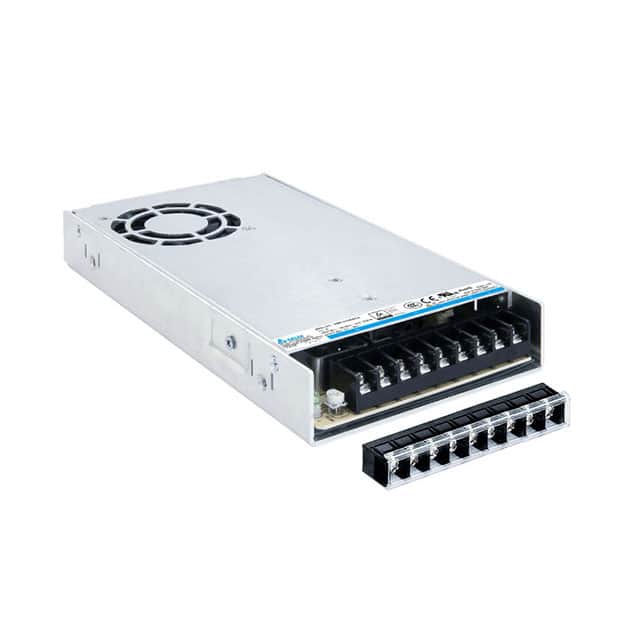

This Delta Electronics PMR-5V320WCGA is an enclosed AC/DC power supply converter with a power output of 320W and a voltage rating of 5V. It features adjustable output, Power Factor Correction (PFC), and universal input capabilities, making it suitable for ITE (Commercial) applications.
The converter is designed for chassis mounting and has dimensions of 215.0mm x 115.0mm x 30.0mm. It operates within a temperature range of -10°C to 70°C with derating and offers an efficiency of 84%.
Key electrical specifications include an output current of 60A and an isolation voltage of 3 kV. The unit is approved by CB, CE, CCC, cURus, and TUV, indicating compliance with various international safety standards.
This model has a single output and is RoHS3 compliant, with REACH unaffected status and an MSL of 1.
The output is 5V at 60A, providing 320W total power.
The efficiency is 84%.
The isolation voltage is 3kV.
The operating temperature range is -10°C to 70°C with derating.
Dimensions are 215.0mm (length) x 115.0mm (width) x 30.0mm (height).
It uses chassis mount.
Features include adjustable output, power factor correction (PFC), and universal input.
