| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

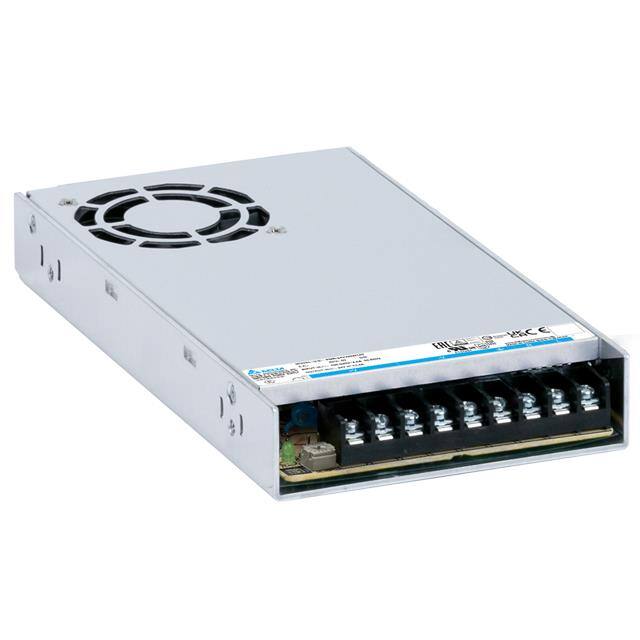

This Delta Electronics PMR-12V320W1AT is an enclosed AC/DC converter designed for various applications including household appliances and ITE commercial use. It delivers 320W of power with a single 12V output and a current rating of 26.7A.
The converter boasts high efficiency at 90.5% and includes features such as adjustable output, Power Factor Correction (PFC), and universal input. It is designed for chassis mounting and operates within a temperature range of -30°C to 70°C with derating.
Key electrical specifications include a 4kV voltage rating and compliance with standards like 60335-1, 60950-1, and 62368-1. The dimensions are 214.9mm in length, 115.1mm in width, and 30.0mm in height.
This unit is RoHS3 compliant and has an MSL of 1, indicating suitability for a wide range of industrial and commercial applications requiring reliable power conversion.
The PMR-12V320W1AT is an enclosed AC/DC converter.
The power output is 320W.
This converter has a 12V output and a current rating of 26.7A.
The efficiency is 90.5%.
Key features include adjustable output, PFC, and universal input.
The operating temperature range is -30°C to 70°C with derating.
It uses a chassis mount.
