| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Insulation Class | |
| Length | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Protection Features | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

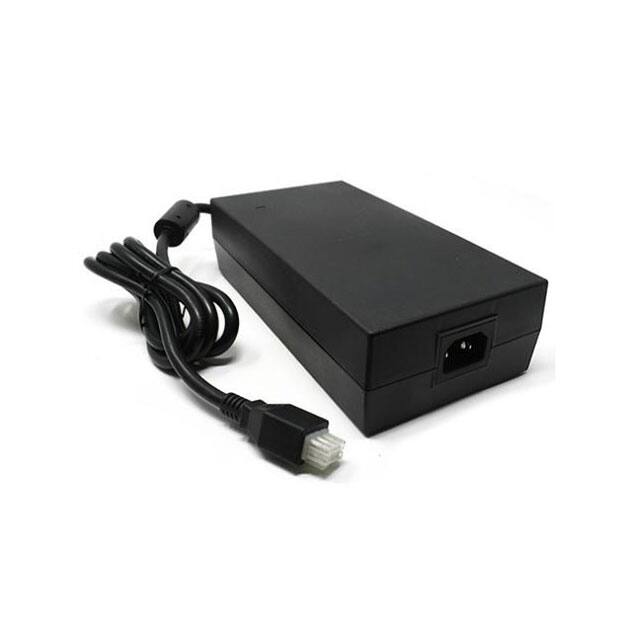

The TT Electronics PMP400-18-S is a high-performance 400-watt medical desktop power supply designed for reliable operation in demanding applications. It delivers a stable 48V output at 8.34A, suitable for various medical and ITE commercial equipment.
This power supply features a wide input voltage range of 90 to 264VAC, making it versatile for international use. With an efficiency greater than 85% and low safety ground leakage current (less than 300 μA), it meets stringent operational and safety standards. The unit is built to operate at altitudes up to 5000 meters and includes essential protection features such as overvoltage, over-temperature, and short-circuit protection.
Constructed in a compact desktop form factor (Class I), the PMP400-18-S measures 249.9mm x 119.9mm x 49.3mm. It utilizes an IEC 320-C14 input connector and a Rectangular, 8 Position output connector. The operating temperature range is -10°C to 60°C, with a linear derating from 100% load at 40°C to 50% load at 60°C. It is compliant with RoHS3 requirements and meets IEC 60601-1-2 4th Edition EMC standards.
-10°C to 60°C.
48V DC at 8.34A.
90 to 264VAC.
89% typical.
Overvoltage, over-temperature, and short-circuit protection.
CB, CE, cURus.
Yes, it has BF class insulation and complies with IEC 60601-1-2 4th Edition for EMC.
