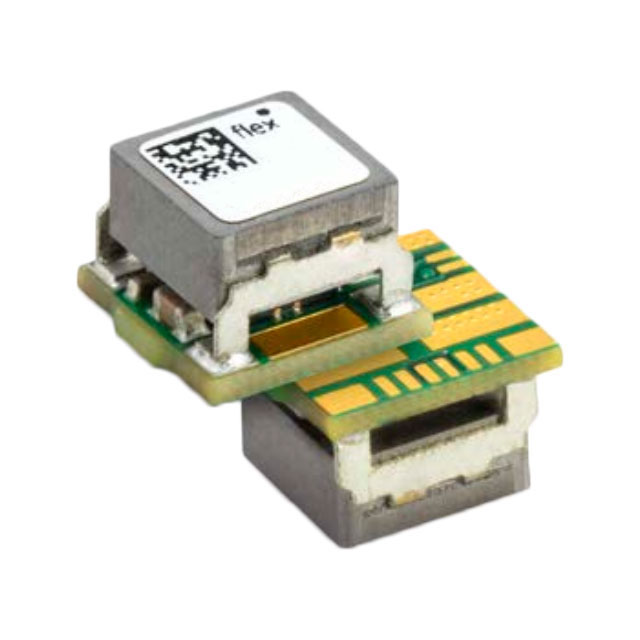

PMM8218TP Non-Isolated PoL Module from Flex Power Modules with 8V min input, adjustable 0.8-5.5V output, 50A max current, and 275W power rating.
Mfr Part #:

PMM8218TP

Available from 1 distributors
Mfr Name: Flex Power Modules
Flex Power Modules
Non-Isolated PoL Module from Flex Power Modules with 8V min input, adjustable 0.8-5.5V output, 50A max current, and 275W power rating.
✓ Total Stock: 60 pcs

PMM8218TP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PMM8218TP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Control Features
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

PMM8218TP Description

Short technical summary and product information.

The Flex Power Modules PMM8218TP is a Non-Isolated Point-of-Load (PoL) DC-DC converter module. It accepts a minimum input voltage of 8V and provides a single adjustable output voltage from 0.8V to 5.5V. The module is capable of delivering up to 50A of output current with a maximum output power of 275W.



This converter achieves a high efficiency of 95.7%, making it suitable for power-sensitive applications. It includes features such as adjustable output, remote on/off control, and remote sense for precise voltage regulation at the load point. The control interface uses an active-low enable signal.



The PMM8218TP is housed in a 20-DIP through-hole package with dimensions of 51.9mm x 26.5mm x 9.1mm. It is designed for commercial ITE (Information Technology Equipment) applications and operates over a temperature range of -40°C to 85°C with derating.

PMM8218TP Quick Information

Product Type: DC DC Converter
Canonical Name: Flex Power Modules PMM8218TP Non-Isolated PoL Module
Subcategory: DC DC Converters

PMM8218TP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PMM8218TP Features

  • Non-Isolated PoL module with 275W output.
  • Adjustable output voltage from 0.8 to 5.5V.
  • High efficiency of 95.7% typical.
  • Includes remote sense and remote on/off.
  • Through-hole 20-DIP package for mounting.

PMM8218TP Applications

  • Suitable for commercial ITE power systems.
  • Ideal for point-of-load voltage regulation.
  • Used in high-current, low-voltage applications.
  • Designed for distributed power architectures.

PMM8218TP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the PMM8218TP?

The output voltage is adjustable from 0.8V to 5.5V.

What is the maximum output current of this module?

The maximum output current is 50A.

What is the efficiency of the PMM8218TP?

The typical efficiency is 95.7%.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C with derating.

What package type does the PMM8218TP use?

It uses a 20-DIP through-hole module package.

Is the PMM8218TP RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified.

What are the control features of this converter?

It features enable control with active-low logic, remote on/off, and remote sense.
