| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
695 pcs
|
695 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

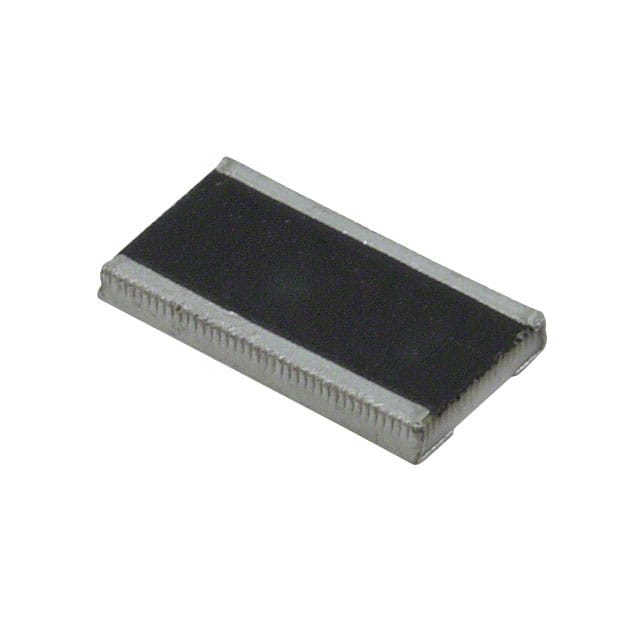

The ROHM Semiconductor PML100HZPJV1L0 is a high-performance surface mount chip resistor designed for demanding applications. It features a low resistance value of 1mΩ and a power rating of 2W, making it suitable for current sensing and power management circuits.
This resistor boasts a tolerance of ±5% and a temperature coefficient of ±100ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 155°C. The thick film composition and AEC-Q200 qualification highlight its suitability for automotive environments.
Packaged in a 2512 (6432 Metric) wide format, this component is designed for surface mounting. Its dimensions are 3.20mm in length and 6.40mm in width, with a height of 0.70mm. The component has 2 terminations and is rated for Moisture Sensitivity Level 1 (MSL 1).
Key features include its automotive AEC-Q200 compliance and current sensing capability, making it a reliable choice for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 mΩ.
The power rating is 2W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
The resistor is supplied in a Wide 2512 (6432 Metric), 1225 package.
Yes, the PML100HZPJV1L0 resistor is AEC-Q200 qualified.
