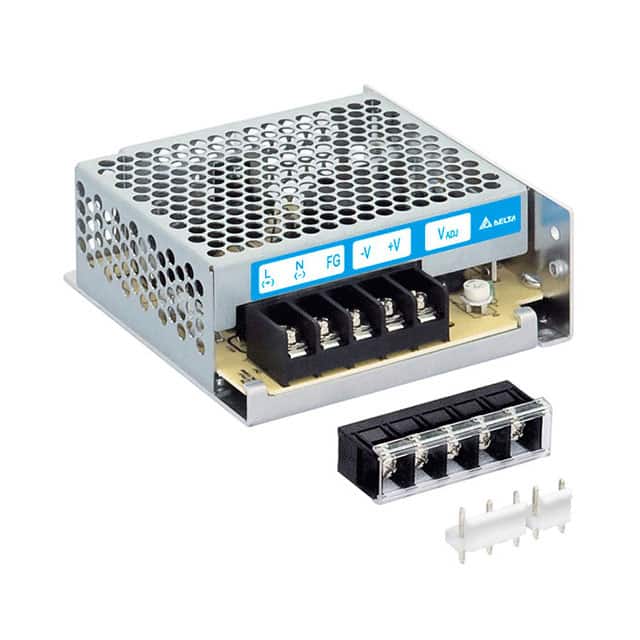

The Delta Electronics PML-24V50W1AA is an AC/DC converter designed for commercial ITE applications. It delivers a 50W output power with a stable 24V voltage.
Key electrical specifications include a wide input voltage range of 85 to 264 VAC, an efficiency of 86%, and an output current capability of 2.09A. The converter offers adjustable output and universal input features, enhancing its versatility. It provides 3kV of isolation voltage.
This open frame converter is designed for chassis mounting, making it suitable for integration into various systems. Its operating temperature range is -10°C to 70°C with derating. The dimensions are 98.0mm x 98.0mm x 38.0mm.
Compliance includes RoHS3, REACH Unaffected, and an MSL rating of 1.
The output voltage is 24V and the maximum output current is 2.09A.
The input voltage range is 85 to 264 VAC.
The power rating is 50W.
The operating temperature range is -10°C to 70°C with derating.
The efficiency is 86%.
The isolation voltage is 3kV.
The mounting type is chassis mount and the package style is open frame.
