| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

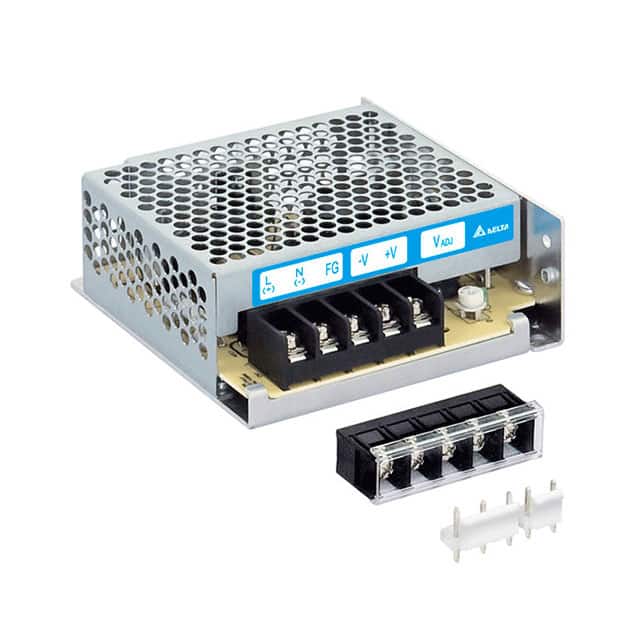

The Delta Electronics PML-24V35W1AA is an open-frame AC/DC power supply designed for chassis mounting. It provides a stable 24VDC output at 1.46A, totaling 35W of power. This unit accepts a universal AC input voltage range from 85V AC to 264V AC, making it suitable for global applications.
Key electrical specifications include an efficiency of 85% and an isolation voltage of 3kV. The operating temperature range is -10°C to 70°C with derating. Protection features include short circuit, overvoltage, overload, and over-temperature protection.
With dimensions of 98.0mm x 98.0mm x 38.0mm, this power supply is compact for integration into various systems. It is designed for ITE (Commercial) applications and holds multiple approval agency certifications including CB, CE, CCC, cURus, and TUV.
The output voltage is 24VDC.
The maximum output current is 1.46A.
The power rating is 35W.
The input voltage range is 85-264VAC.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount.
