| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

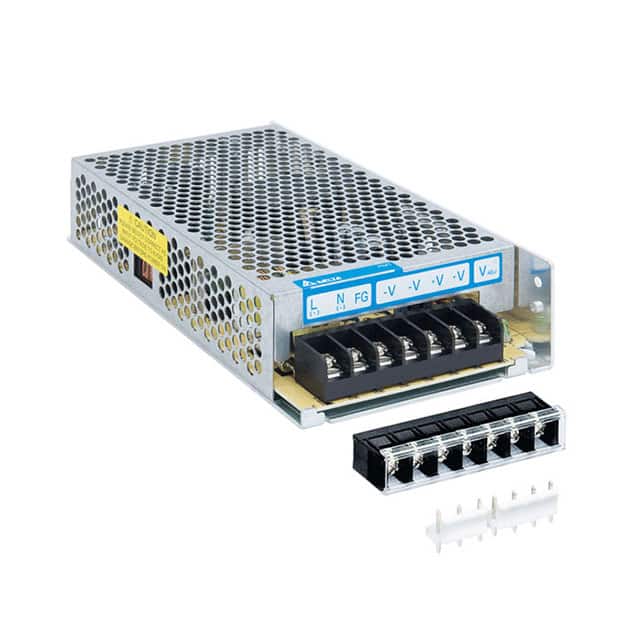

The Delta Electronics PML-24V150W1AH is an AC DC Converter designed for ITE (Commercial) applications. This open frame unit offers a 24V output voltage and a maximum power of 150W, with a current rating of 6.5A.
Key electrical specifications include an efficiency of 89% and an adjustable output feature. The converter operates within a temperature range of -10°C to 70°C with derating. It is approved by CB, CE, CCC, cURus, and TUV.
Mechanically, the unit is designed for chassis mounting and has dimensions of 178.0mm in length, 97.0mm in width, and 38.0mm in height. It features a single output.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. The voltage isolation is rated at 3 kV.
The output voltage is 24V.
The power rating is 150W.
It uses chassis mount.
The operating temperature range is -10°C to 70°C with derating.
It is approved by CB, CE, CCC, cURus, and TUV.
