| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

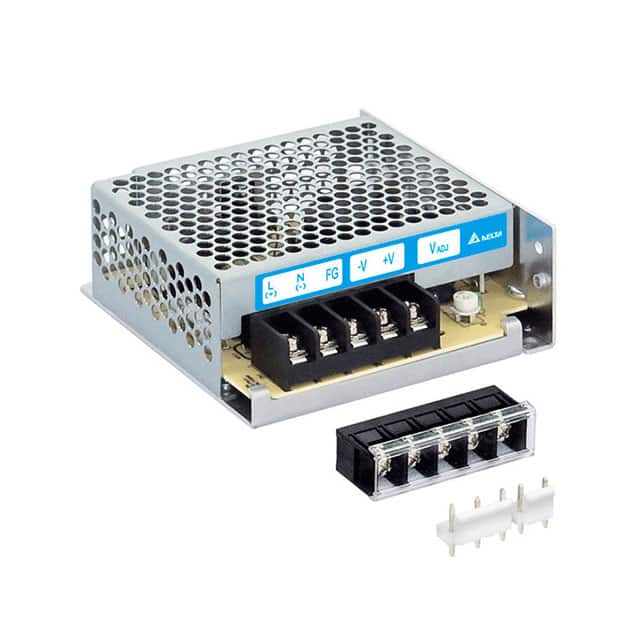

This Delta Electronics PML-12V35W1AH is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 12V with a maximum current of 2.92A, delivering a total power of 35W.
The converter operates with a wide input voltage range of 85 to 264 VAC, offering universal input capability. It features adjustable output and an isolation voltage of 3 kV. The efficiency is rated at 84% and it operates within a temperature range of -10°C to 70°C with derating.
With dimensions of 98.0mm x 98.0mm x 38.0mm, this unit is designed for chassis mounting. It is approved by CB, CE, CCC, cURus, and TUV.
Compliance includes RoHS3, MSL 1 Unlimited, and REACH Unaffected.
The output voltage is 12V.
The maximum output current is 2.92A.
The input voltage range is 85 to 264 VAC.
It supports chassis mounting.
The operating temperature range is -10°C to 70°C (With Derating).
